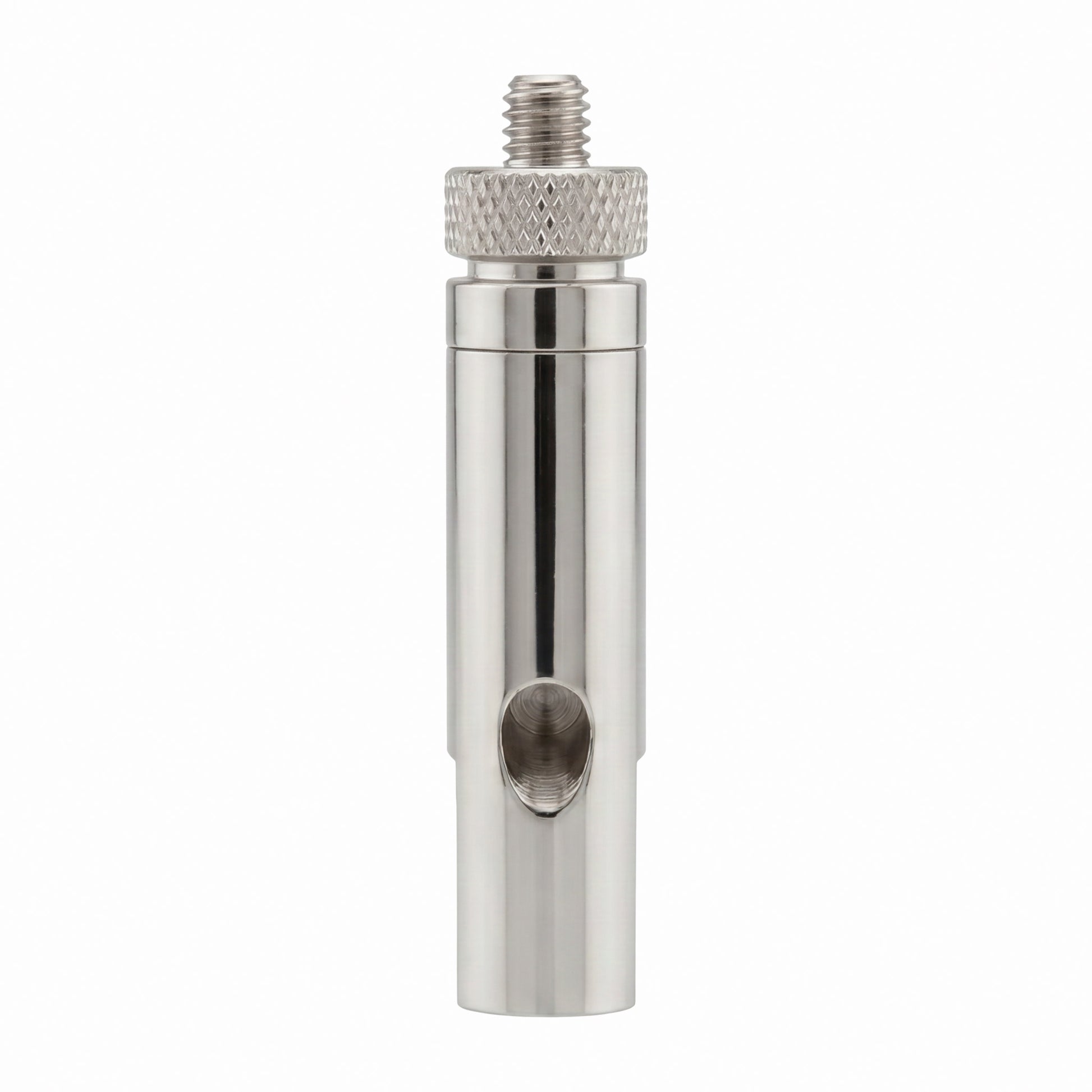

Self-Locking Gripper with 3/16" Horn - 1.5mm Aircraft Cable
Part# LM-FO-XXX4
Self-locking side-exit cable gripper featuring a 3/16" horn for 1.5mm aircraft cable alignment. Perfect for commercial spaces. Vital for professional lighting.
Couldn't load pickup availability
View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.
Self-Locking Gripper with 3/16" Horn - 1.5mm Aircraft Cable

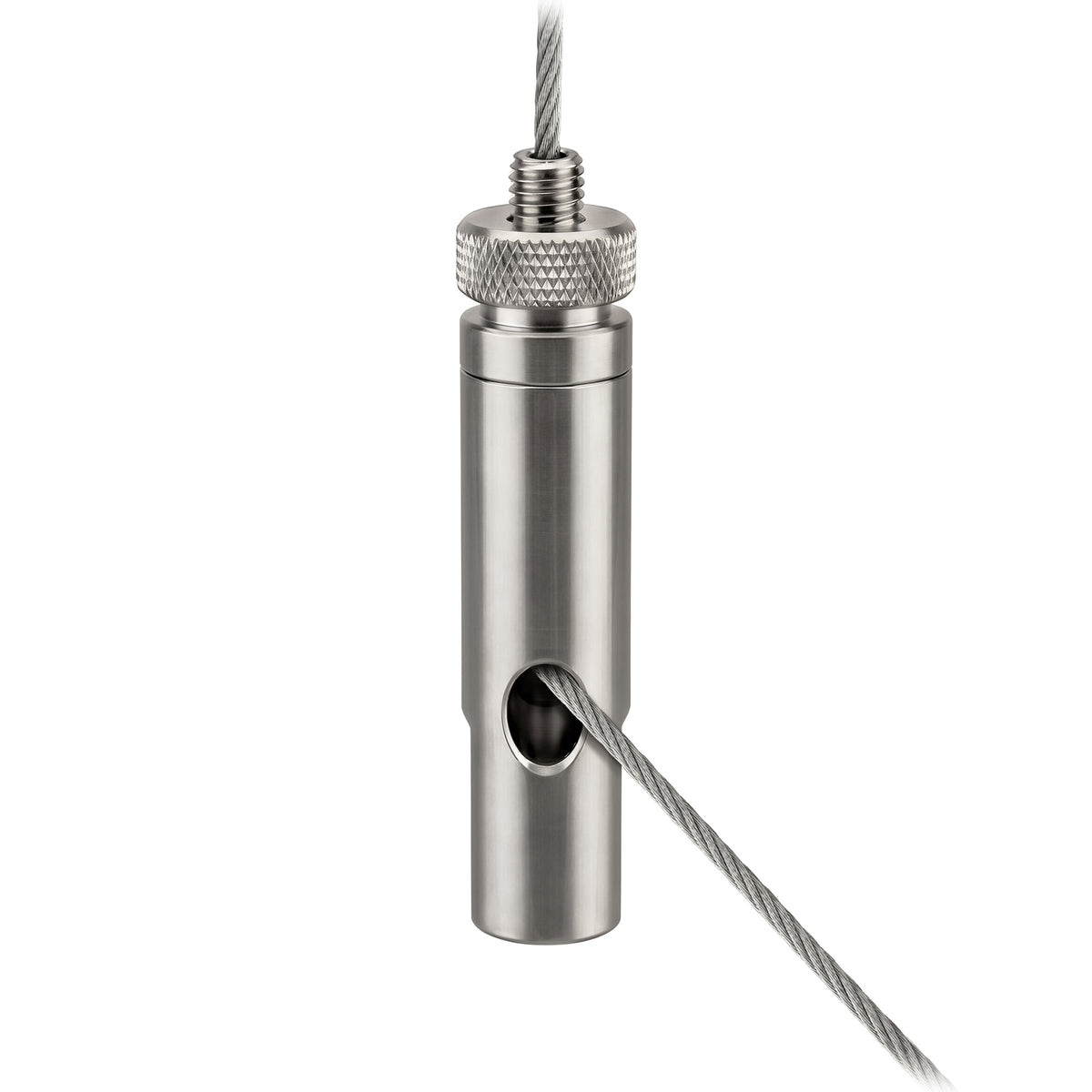

A side-exit cable gripper engineered specifically for 0.0625-inch aircraft cable. The side-exit port routes excess cable horizontally rather than feeding it down into the light fixture housing. This design isolates internal electrical components from physical interference, ensuring a clean and safe installation for low-profile architectural lighting. Designer’s Note The side-exit configuration routes the structural wire rope away from energized conductors, reducing interference and improving installation safety. Excess cable should only be trimmed after final leveling and system alignment are fully completed. Quick Specs
Designer’s Note
Verify compatibility and structural clearances prior to installation.
Specifications
| Component Type | Side-Exit Cable Gripper |
| Material | Machined Brass with Stainless Steel Bearings |
| Finish | Nickel-Plated |
| Compatibility | 0.0625" (1/16") Aircraft Cable |
| Load Rating | 65 lbs maximum static load |
| Environment | Indoor / Dry Location Only |
