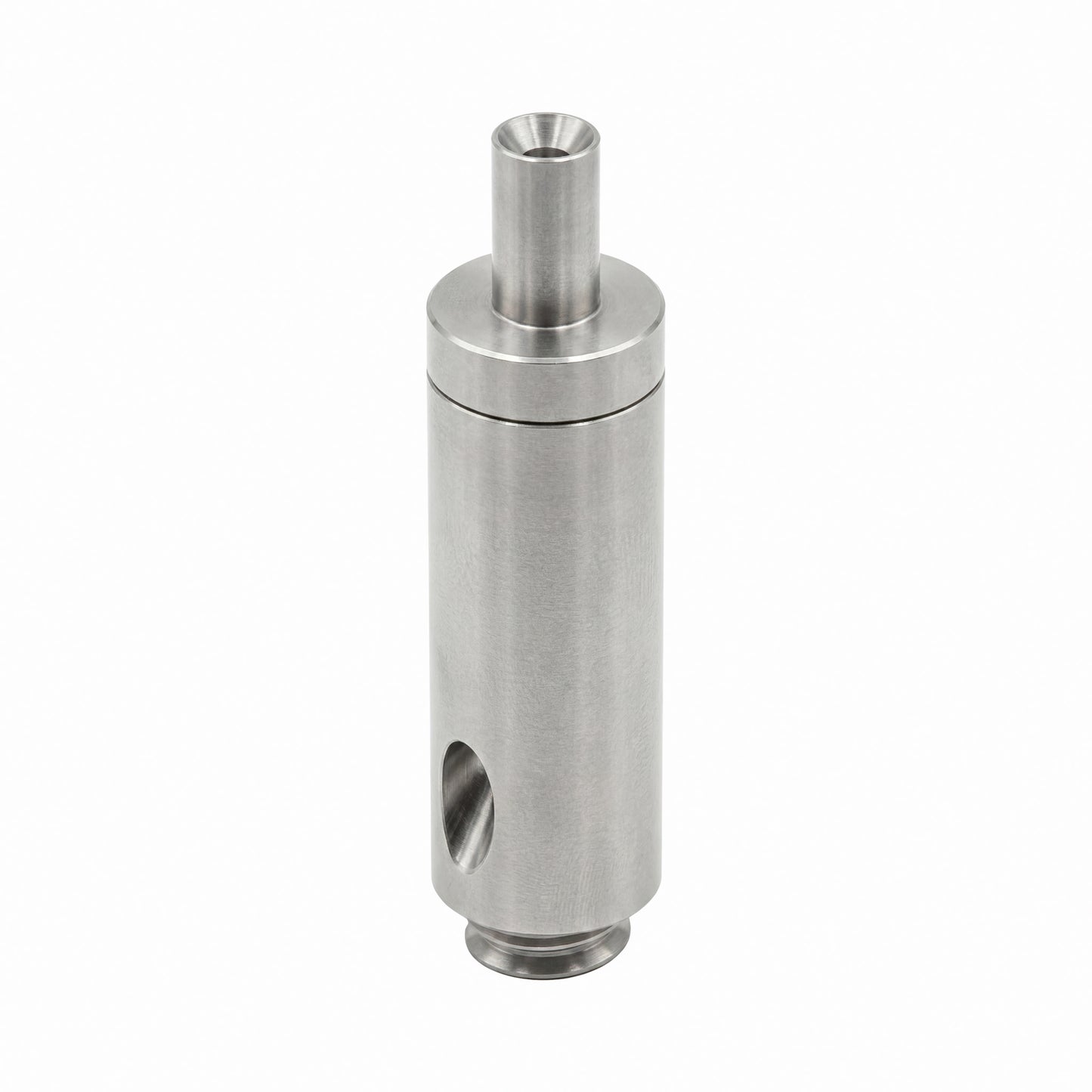

Standard Barrel Self-Locking Gripper - Adjustable for 3/64" to 1/16" Aircraft Cable
Part# LS-CAG-AC16-SE-14-20-EXT
Standard barrel self-locking gripper with 1/4"-20 external thread specifically for 3/64" to 1/16" aircraft cable. Vital for professional lighting.
Couldn't load pickup availability
View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.
Standard Barrel Self-Locking Gripper - Adjustable for 3/64" to 1/16" Aircraft Cable

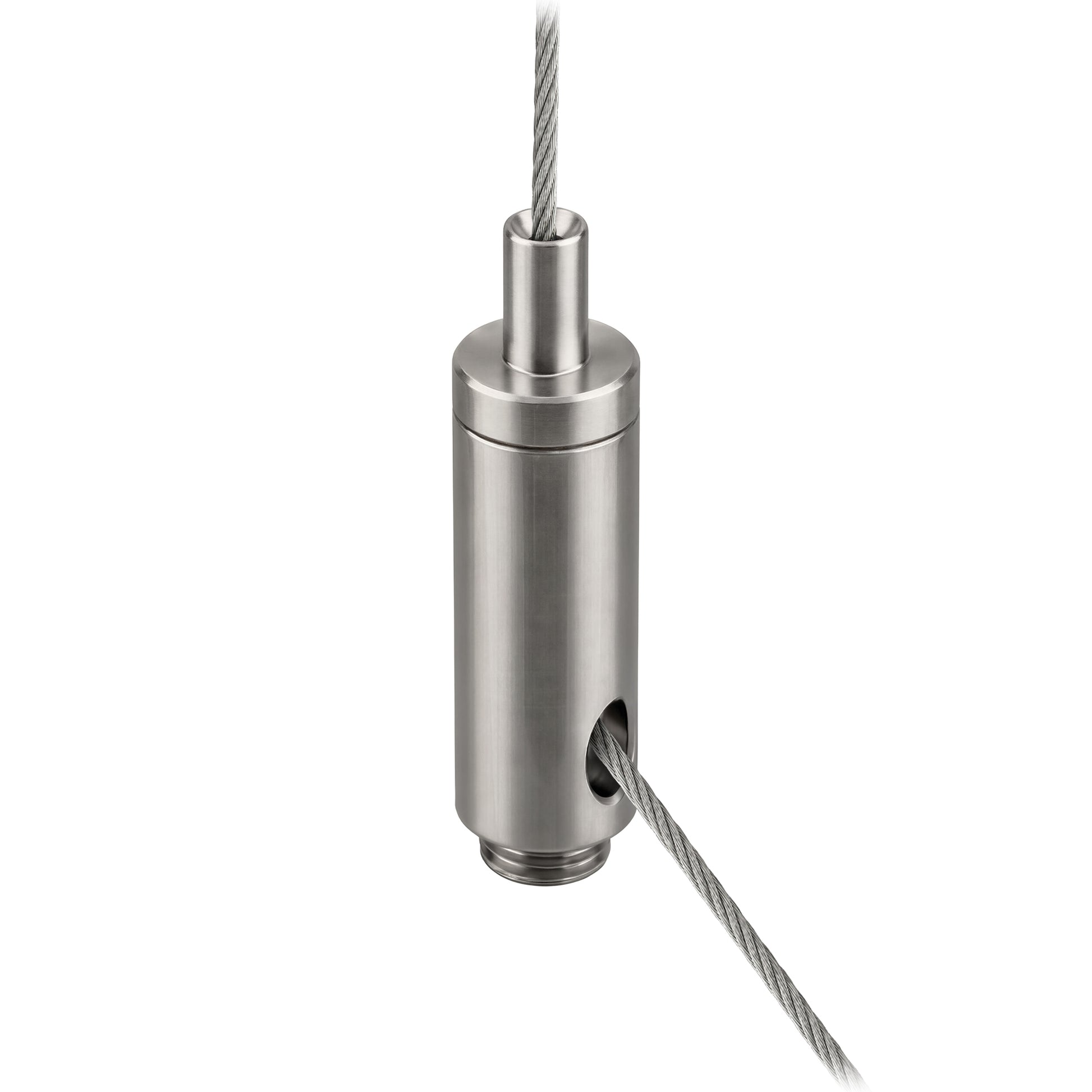

A structural aircraft cable gripper designed to accommodate 3/64 inch and 1/16 inch wire rope. Built with a 1/4-20 external thread for mounting. The internal ball bearing locking mechanism allows infinite vertical adjustment of the fixture height.
Designer’s Note
Always depress the release pin to adjust the cable height. Never attempt to pull the cable backward through the gripper without holding the pin down. Leave a minimum of one inch of excess cable protruding from the exit point for safety verification.
Specifications
| Material | Machined Brass with Stainless Steel Bearings |
| Finish | Nickel-Plated |
| Compatibility | 3/64 inch and 1/16 inch Aircraft Cable, 1/4-20 Tapped Housings |
| Load Rating | 65 lbs max static load (with 1/16 inch cable) |
| Environment | Indoor / Dry Location Only |
