C7615 Trimless Mud-in Channel 76mm x 13mm

C7615 Trimless Mud-in Channel 76mm x 13mm

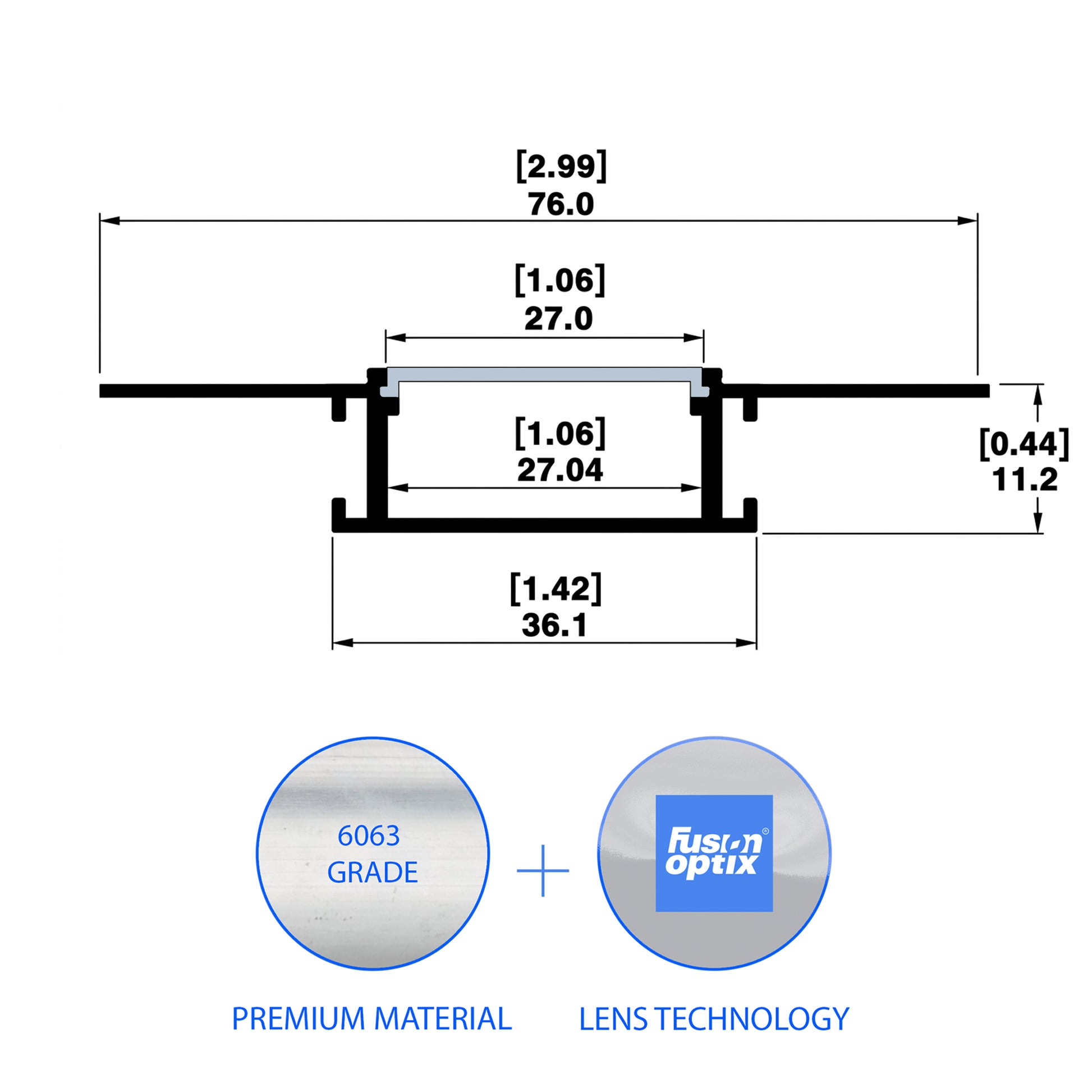

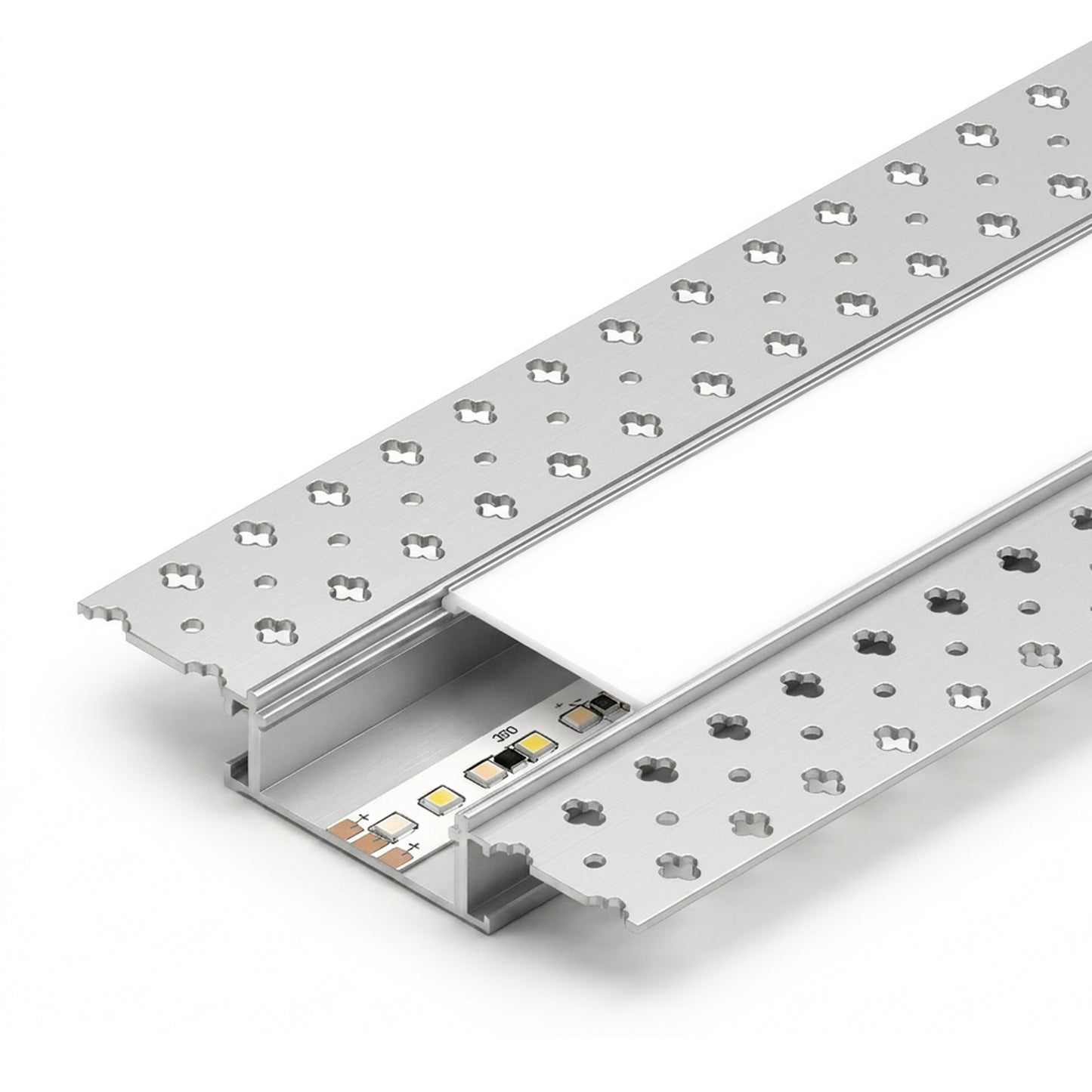

C7615 Trimless Mud-in LED Integration System Large-Format Architectural Mud-in Channel for High-Lumen Integration The C7615 operates as a heavy-duty, large-format trimless fixture assembly architecture engineered for demanding applications. It establishes an exceptionally rigid load path utilizing integrated mud-in wings to achieve a seamless, flush installation in ceilings or walls. The channel connects flexible LED tape and 20mm light engines to the building substrate, and it acts as an efficient platform for the lighting system while remaining hidden behind the finish. This integration node transforms raw electrical components into a seamless, flush-mount architectural feature. The structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for continuous linear lighting arrays embedded directly into the architectural surface. Engineering Function The system protects high-lumen density LED engine performance through high-capacity passive thermal dissipation. The 76.00 mm by 11.20 mm heavy-duty 6063-T5 aluminum structure conducts heavy heat loads away from the light source into the building assembly, and this process stabilizes junction temperatures. The large-format profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to ensure precise light distribution, and this optical integration minimizes visible diode imaging in flush-mount applications. Material and Finish Base Material: Heavy-duty 6063-T5 aluminum with integrated mud-in wings Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey (C7615-ECG), Black (C7615-ECB), and White (C7615-ECW) System Compatibility LED Engines: Validated for select LEDmate LUMAflex and CHROMAflex and VITAflex tape series, and 20mm light engines Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for trimless mud-in profiles Installation and Workflow Advantages Embeds directly into drywall ceilings and walls for a seamless, flush installation Utilizes integrated mud-in wings for secure plastering and structural rigidity Dissipates heat effectively for high-lumen density applications Simplifies procurement with field cuttable standard lengths Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width (with flanges) 76.00 mm Overall Height 11.20 mm Internal Channel Width 27.04 mm Base Width 36.10 mm Form Factor Large-Format Trimless Mud-in Specification and Integration Support This large-format trimless mud-in integration system is specified for architectural projects requiring a seamless, flush-mount finish and high-capacity thermal stability in demanding applications. It is engineered for use by drywall contractors and architectural lighting designers and OEM luminaire builders. ⇩ Download C7615 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
