C3511 Trimless Mud-in Channel 35.5mm x 11.3mm

C3511 Trimless Mud-in Channel 35.5mm x 11.3mm

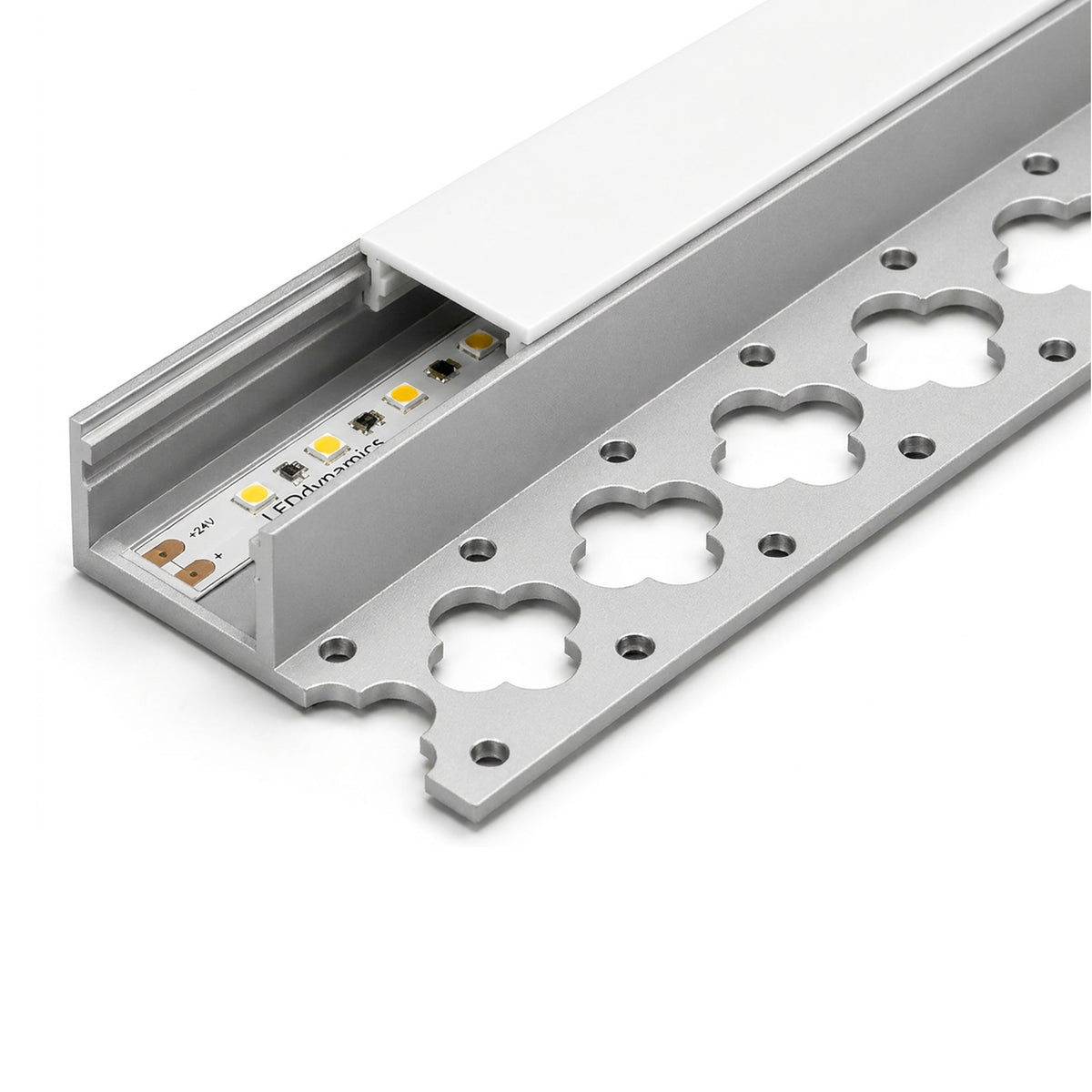

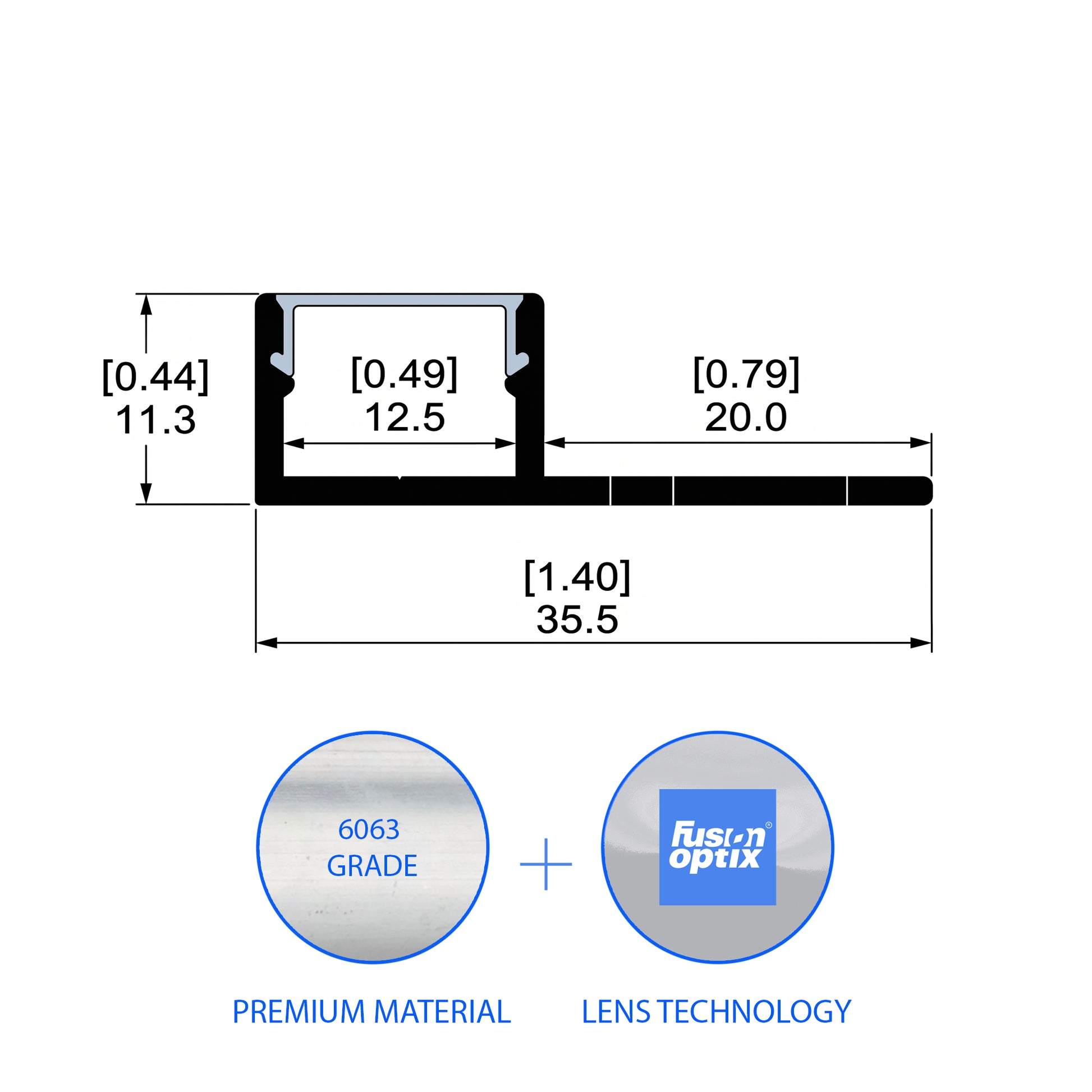

C3511 Trimless Mud-in LED Integration System Single-Sided Perforated Trimless Architectural Channel for Perimeter Integration The C3511 operates as a specialized mud-in fixture assembly architecture featuring a single-sided perforated flange. It is optimized for perimeter installations and wall-to-ceiling transitions. The channel connects flexible LED tape to the building substrate, and it acts as a reliable thermal management platform for the lighting system. This integration node transforms electrical components into a seamless, flush-mount lighting feature. The structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for linear lighting arrays embedded directly into the perimeter of the wall or ceiling surface. Engineering Function The system protects LED engine performance through continuous passive thermal dissipation. The 35.50 mm by 11.30 mm 6063-T5 aluminum structure channels heat into the surrounding architectural mass, and this process stabilizes junction temperatures. The profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to ensure uniform light output, and this optical integration minimizes visible diode imaging. Material and Finish Base Material: 6063-T5 aluminum with single-sided perforated flange Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey (C3511-ECG), Black (C3511-ECB), and White (C3511-ECW) System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for trimless mud-in profiles Installation and Workflow Advantages Plasters directly into the perimeter wall or ceiling surface to enable hardware-free architectural transitions Optimizes installation in corner/edge scenarios where only one mounting flange is required Simplifies procurement with field cuttable standard lengths Protects the LED engine from physical damage inside embedded architectural recesses Application Environments Wall-to-ceiling perimeter transitions Architectural cove lighting Modern residential and commercial interiors Flush-mount perimeter linear lighting Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 35.50 mm Overall Height 11.30 mm Form Factor Single-Sided Trimless Flush-Mount Specification and Integration Support This single-sided trimless integration system is specified for architectural projects requiring precise perimeter alignment and stable thermal control. It is engineered for use by drywall contractors and architectural lighting designers and OEM luminaire builders. ⇩ Download C3511 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
