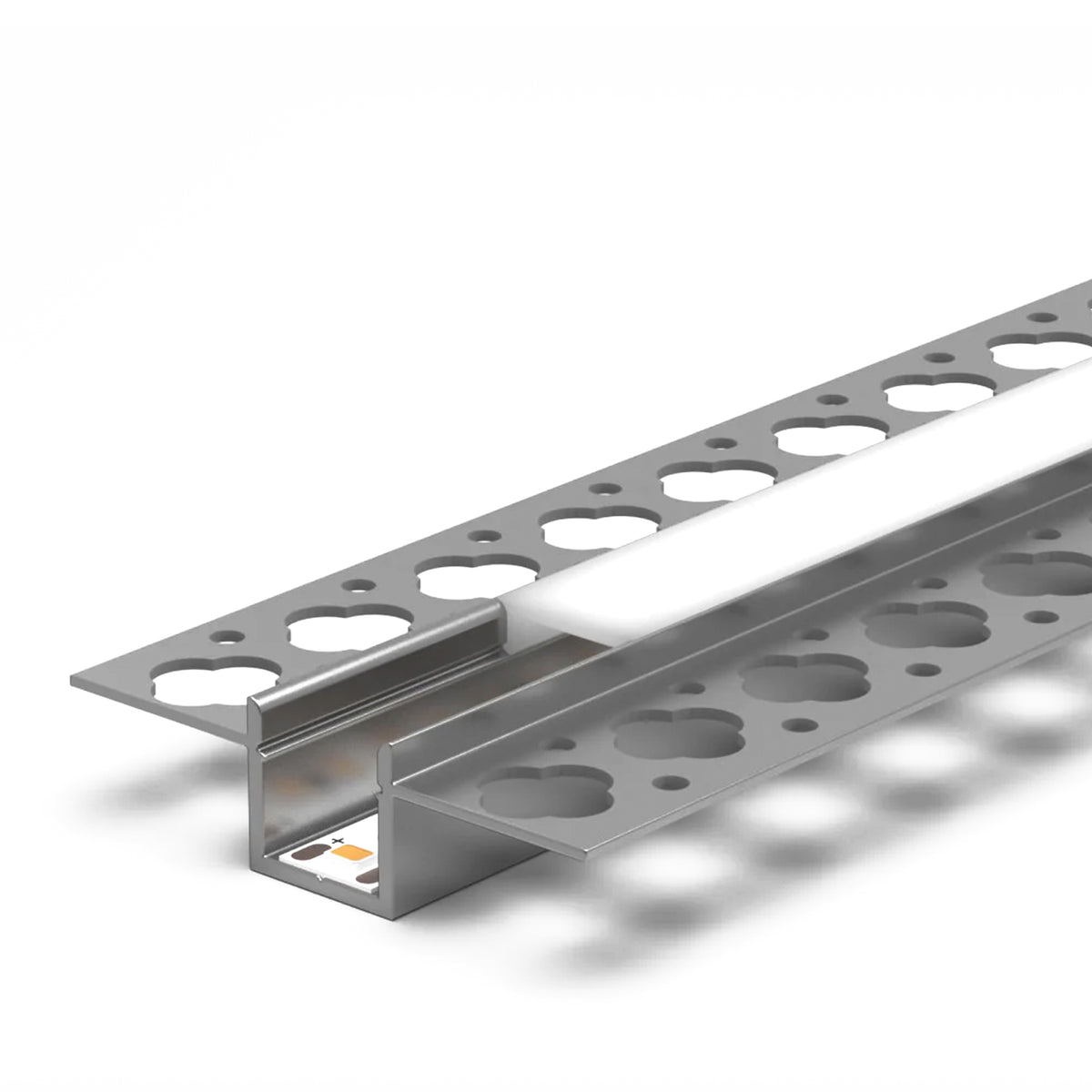

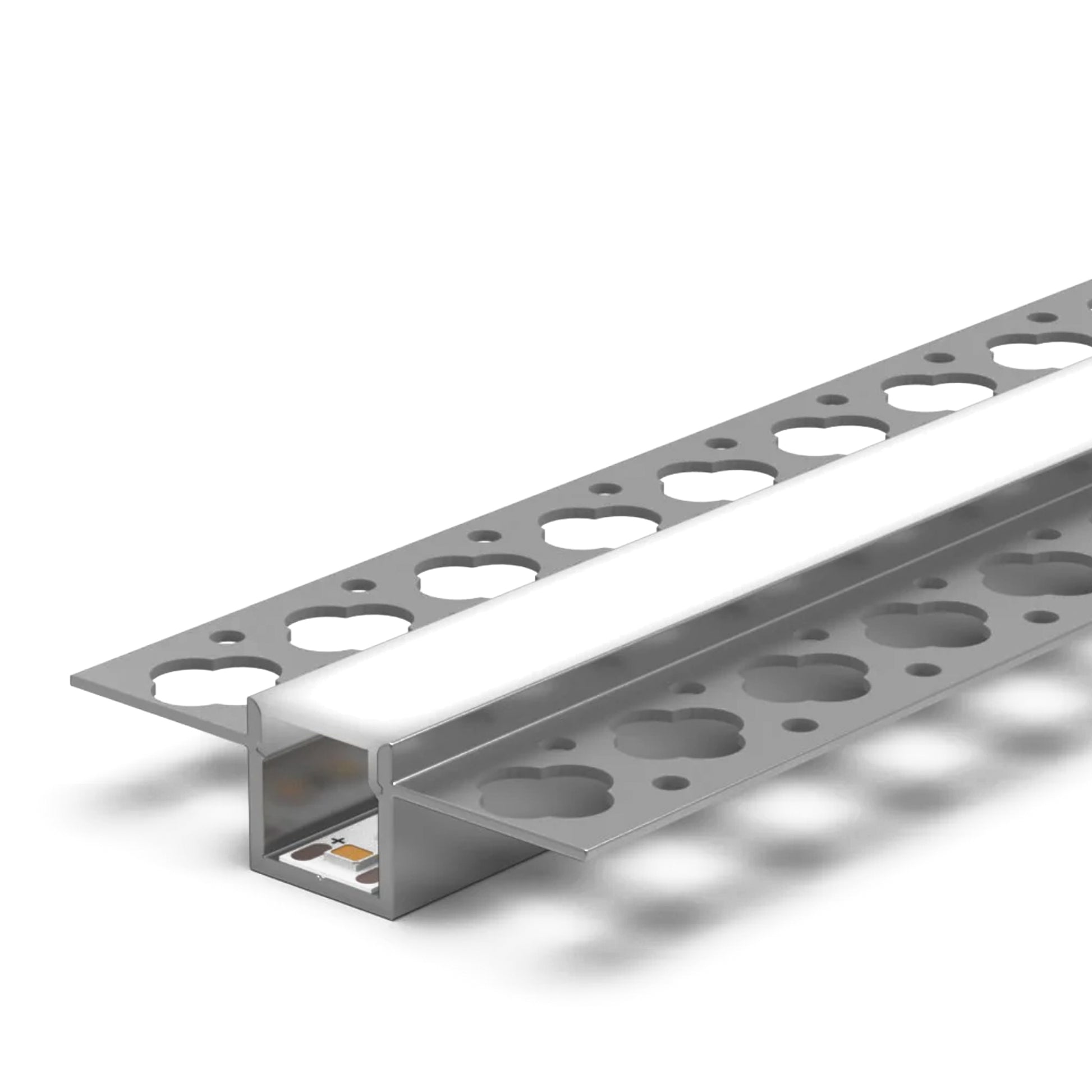

C1159 Trimless Mud-in Channel 15.5mm x 15mm

C1159 Trimless Mud-in Channel 15.5mm x 15mm

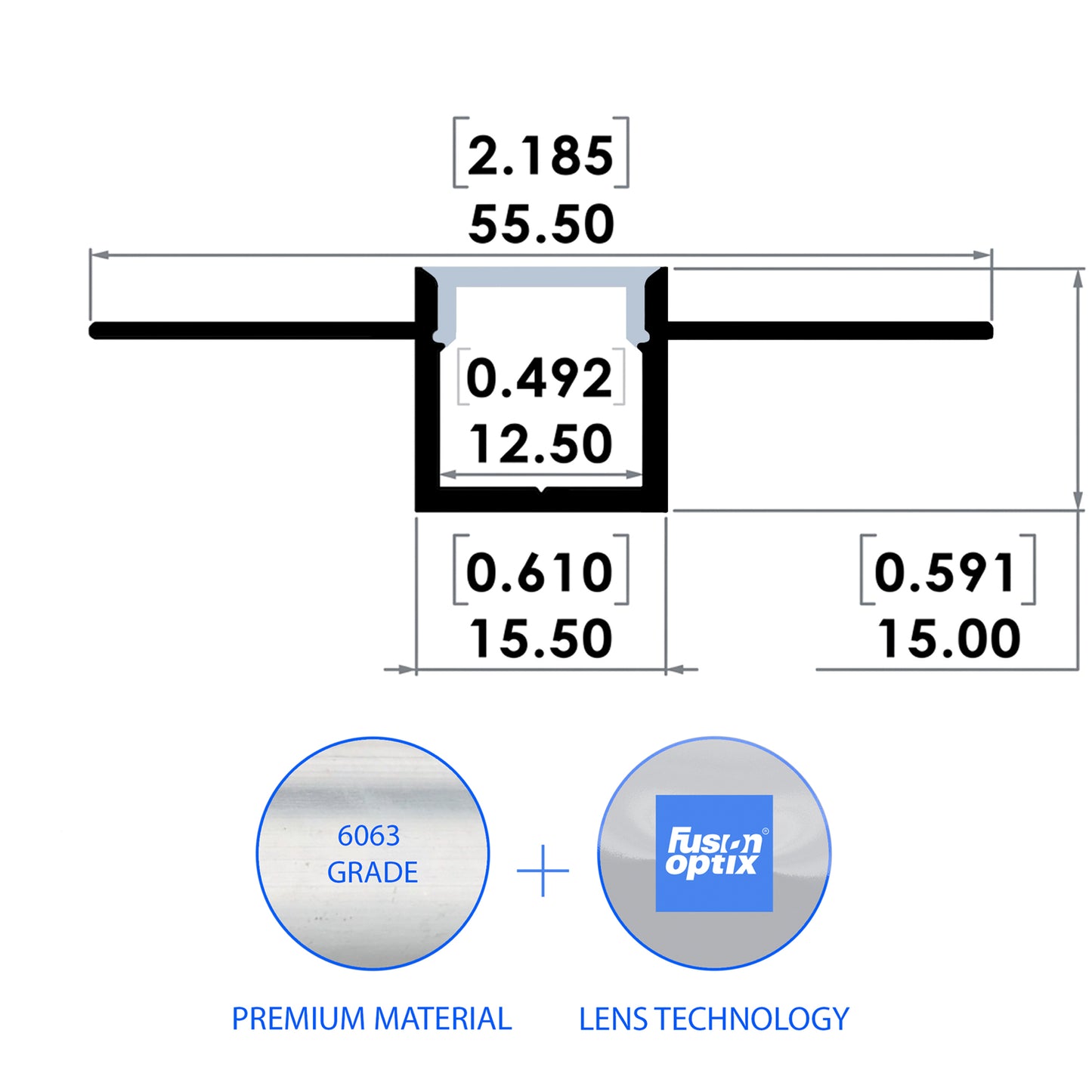

C1159 Trimless Mud-in LED Integration System Flush-Mount Architectural Mud-in Channel for Hardware-Free Linear Integration The C1159 operates as a flush-mount trimless assembly architecture. It enables hardware-free linear runs, and it facilitates a clean, seamless architectural aesthetic. The channel connects flexible LED tape to the building substrate, and it acts as an effective thermal management platform for the lighting system. This integration node transforms raw electrical components into a seamless, flush-mount lighting feature. The structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for linear lighting arrays embedded directly into the wall or ceiling surface. Engineering Function The system protects LED engine performance through continuous passive thermal dissipation. The 55.50 mm by 15.00 mm 6063-T5 aluminum structure channels heat into the surrounding architectural mass, and this process stabilizes junction temperatures. The profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to ensure uniform light output, and this optical integration minimizes visible diode imaging. Material and Finish Base Material: 6063-T5 aluminum with broad mounting flanges Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey (C1159-ECG), Black (C1159-ECB), and White (C1159-ECW) System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for trimless mud-in profiles Installation and Workflow Advantages Plasters directly into the mounting surface to enable hardware-free architectural runs Enables seamless transitions between lighting and architectural surfaces Simplifies procurement with field cuttable standard lengths Protects the LED engine from physical damage inside embedded architectural recesses Application Environments Modern drywall ceilings and walls Seamless architectural corridors High-end commercial lobby lighting Flush-mount linear cove lighting Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 55.50 mm Overall Height 15.00 mm Form Factor Trimless Flush-Mount Specification and Integration Support This flush-mount trimless integration system is specified for architectural projects requiring a clean, hardware-free finish and stable thermal control. It is engineered for use by drywall contractors and architectural lighting designers and OEM luminaire builders. ⇩ Download C1159 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
