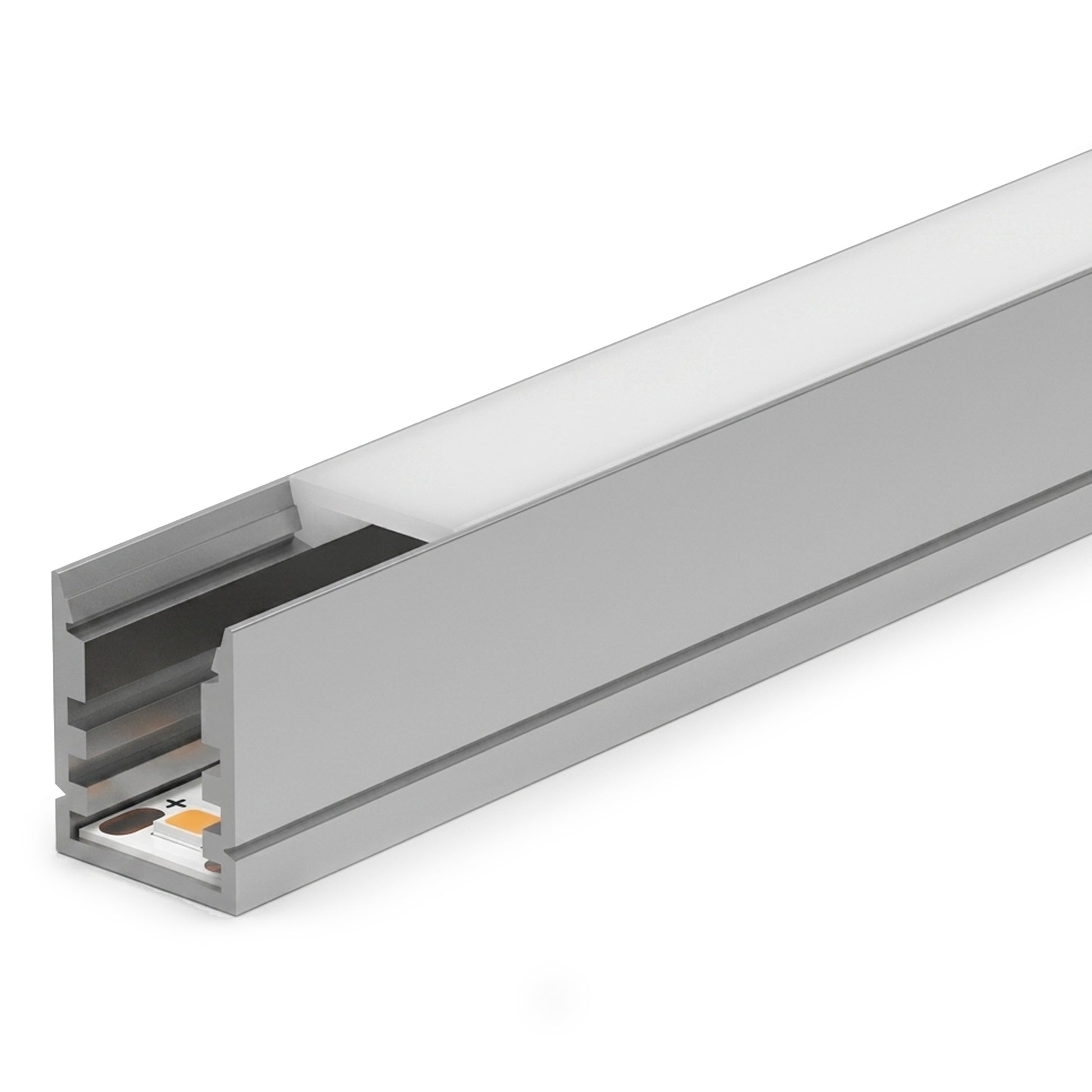

C1021 Millwork Channel 12mm x 15mm

C1021 Millwork Channel 12mm x 15mm

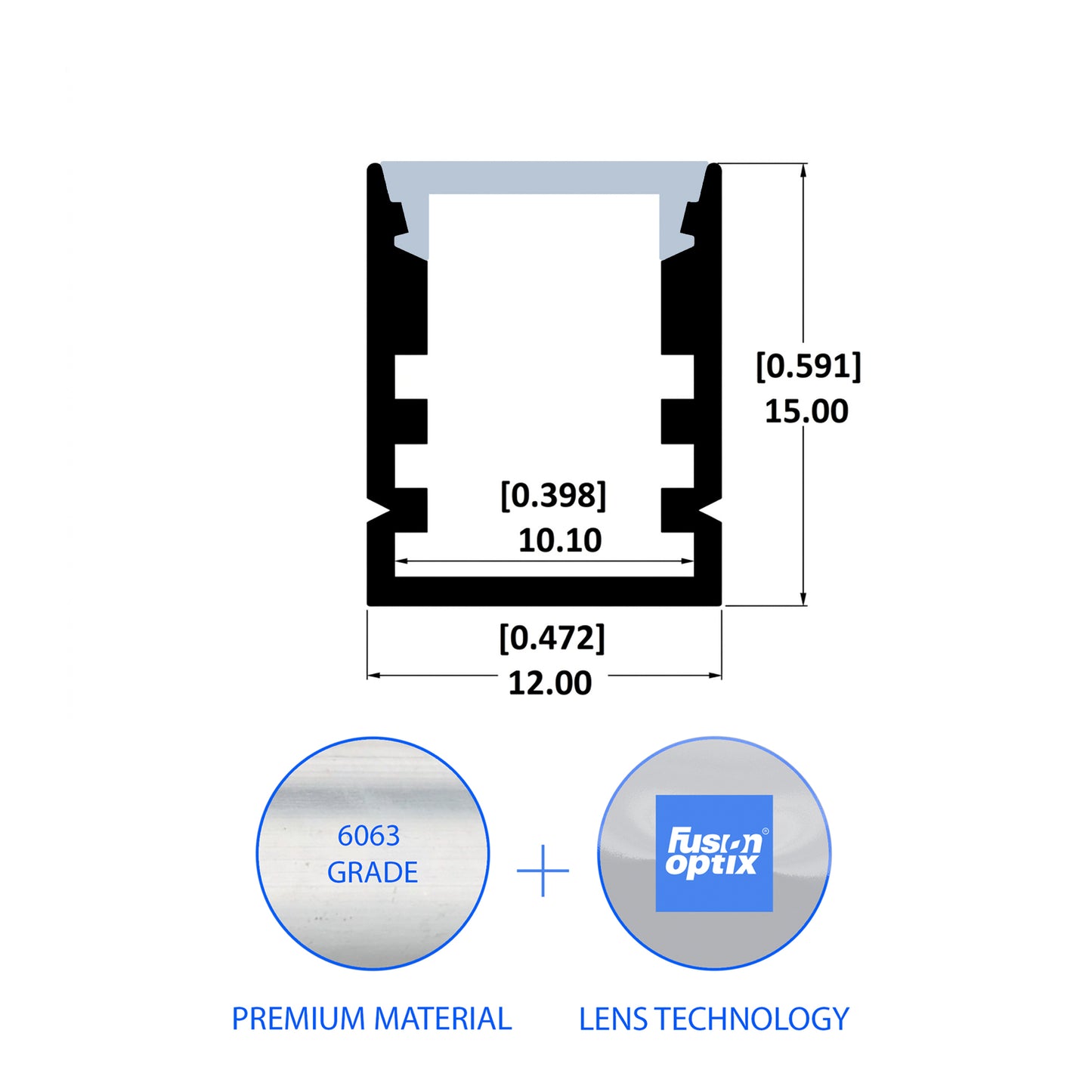

C1021 Millwork LED Integration System Secure Architectural Millwork Channel for Linear LED Tape Integration The C1021 operates as a secure fixture assembly architecture engineered specifically for custom millwork applications. It establishes a rigid mechanical load path within wooden or metal cabinetry. The channel connects flexible LED tape to the millwork structure, and it acts as a highly effective platform for the lighting system. This integration node transforms raw electrical components into a permanent architectural feature. The structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for linear arrays inside complex millwork environments. Engineering Function The system protects LED engine performance through continuous passive heat dissipation. The 12.00 mm by 15.00 mm 6063-T5 aluminum structure conducts heat away from the light source, and this process stabilizes junction temperatures. The profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix systems to ensure smooth light distribution, and this optical integration produces illumination free of visual artifacts. Material and Finish Base Material: Premium 6063-T5 aluminum extrusion Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey (C1021-ECG), Black (C1021-ECB), and White (C1021-ECW) System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for secure millwork profiles Installation and Workflow Advantages Secures firmly into routed millwork slots to improve structural stability Dissipates heat effectively in enclosed cabinet environments Simplifies procurement with field cuttable standard lengths Improves field consistency for custom interior lighting projects Application Environments Custom high-end cabinetry Interior retail shelving Residential architectural millwork Built-in display cases Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 12.00 mm Overall Height 15.00 mm Form Factor Secure Millwork Profile Specification and Integration Support This secure millwork integration system is specified for architectural projects requiring rigid mechanical alignment and reliable thermal control in cabinetry. It is engineered for use by custom millworkers and architectural lighting designers and OEM luminaire builders. ⇩ Download C1021 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
