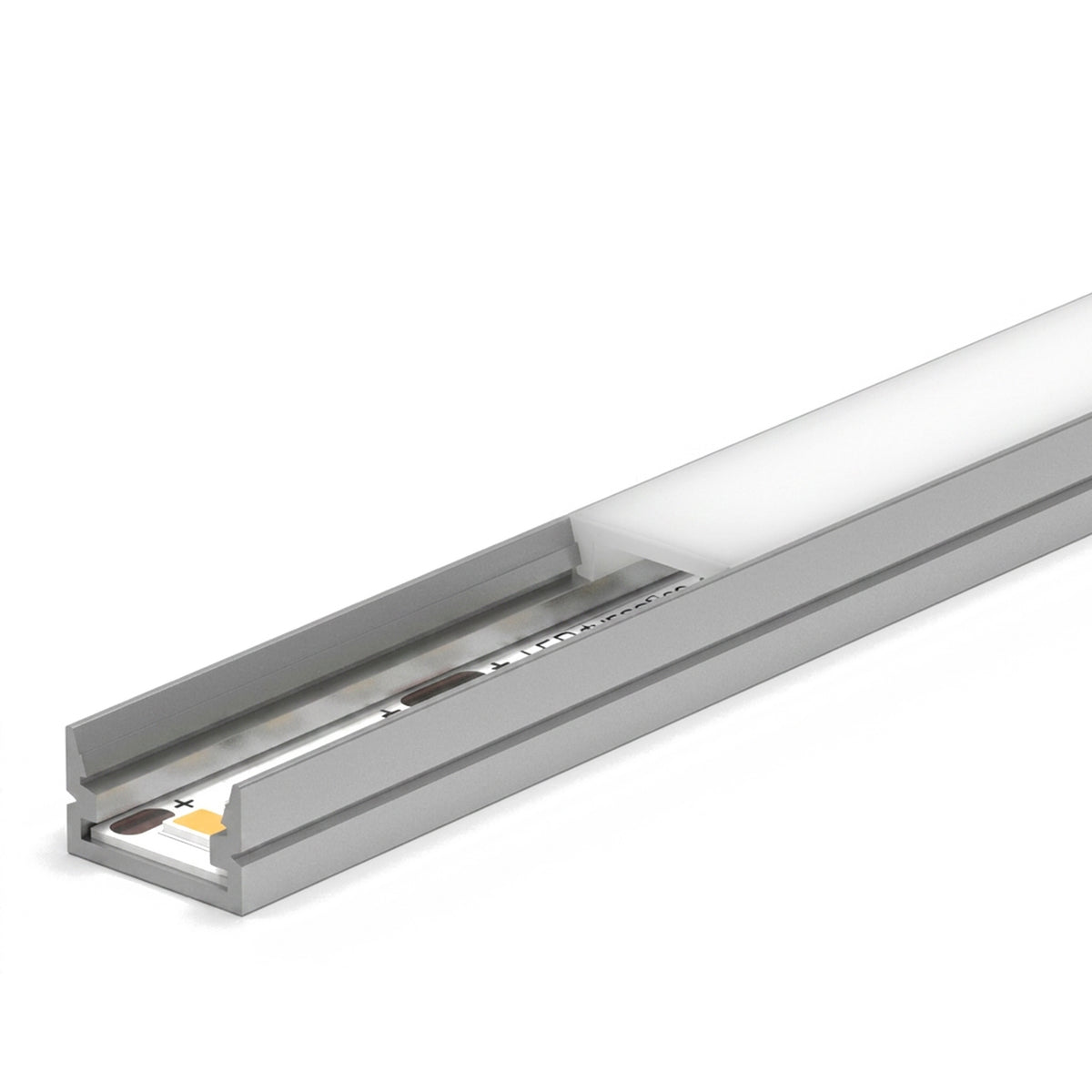

C1020 Surface Mount Channel 12mm x 7mm

C1020 Surface Mount Channel 12mm x 7mm

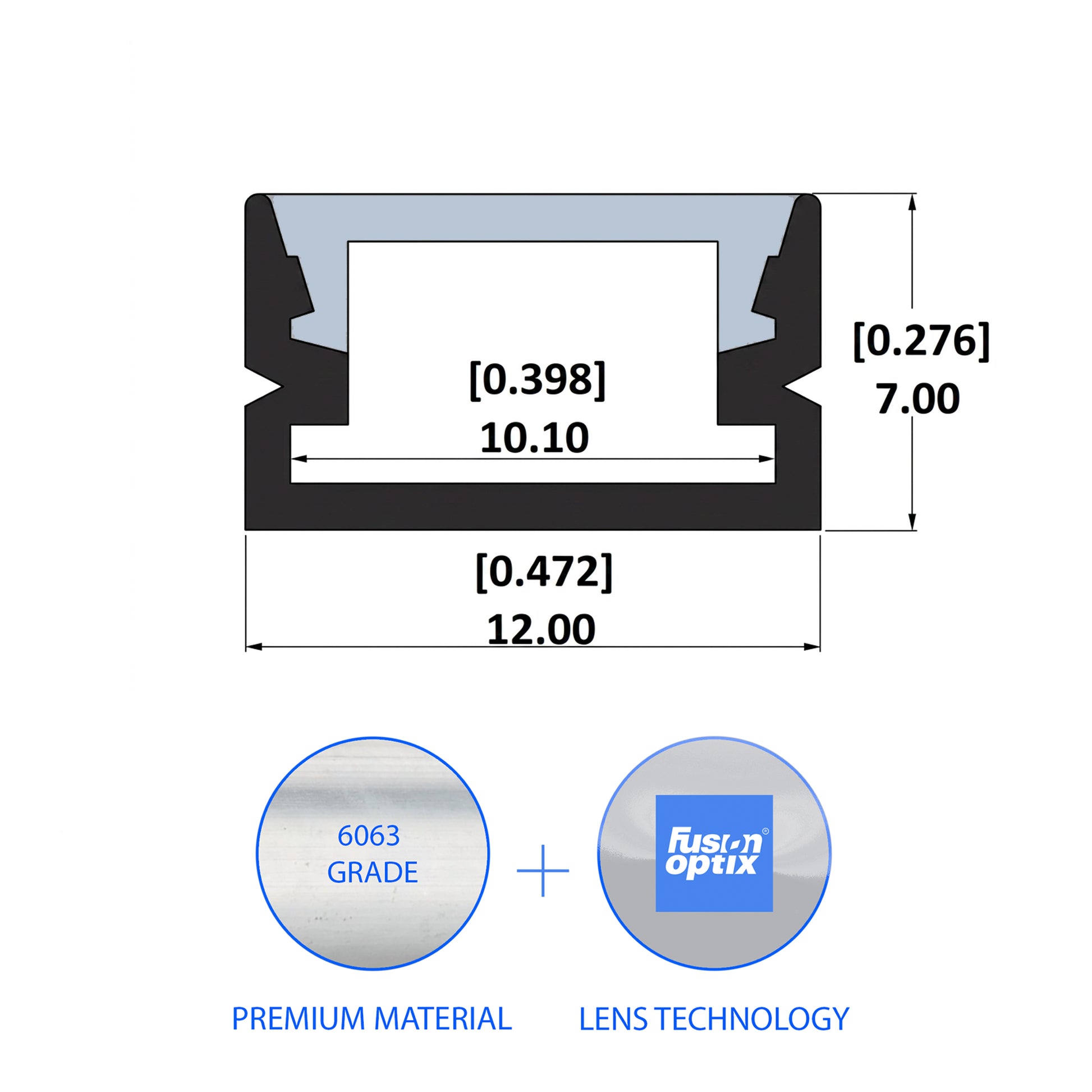

C1020 Surface Mount LED Integration System Highly Compact Architectural Surface Channel for Space-Constrained Integration The C1020 operates as a highly compact surface-mounted fixture assembly architecture. It establishes a rigid mechanical load path within strict space constraints. The channel connects flexible LED tape to the building surface, and it acts as a vital platform for the lighting system. This integration node transforms raw electrical components into a discrete architectural feature. The compact structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for linear arrays in small-format applications. Engineering Function The system protects LED engine performance through localized passive heat dissipation. The 12.00 mm by 7.00 mm 6063-T5 aluminum structure conducts heat away from the light source, and this process stabilizes junction temperatures in confined spaces. The profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to ensure smooth light distribution, and this optical integration minimizes visible diode imaging in low-clearance environments. Material and Finish Base Material: Compact 6063-T5 aluminum extrusion Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey, Black, and White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for compact profiles Installation and Workflow Advantages Secures tightly into confined architectural spaces Maximizes utility in areas where larger profiles are not feasible Simplifies procurement with field cuttable standard lengths Improves field consistency for discrete linear surface mounted arrays Application Environments Interior display casework Tight under cabinet lighting Narrow architectural coves Compact furniture accent lighting Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 12.00 mm Overall Height 7.00 mm Form Factor Highly Compact Specification and Integration Support This compact surface mount integration system is specified for architectural projects requiring rigid alignment in strict space-constrained environments. It is engineered for use by custom millworkers and architectural lighting designers and OEM luminaire builders. ⇩ Download C1020 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
