C1019 Recessed Channel 25mm x 14.5mm

C1019 Recessed Channel 25mm x 14.5mm

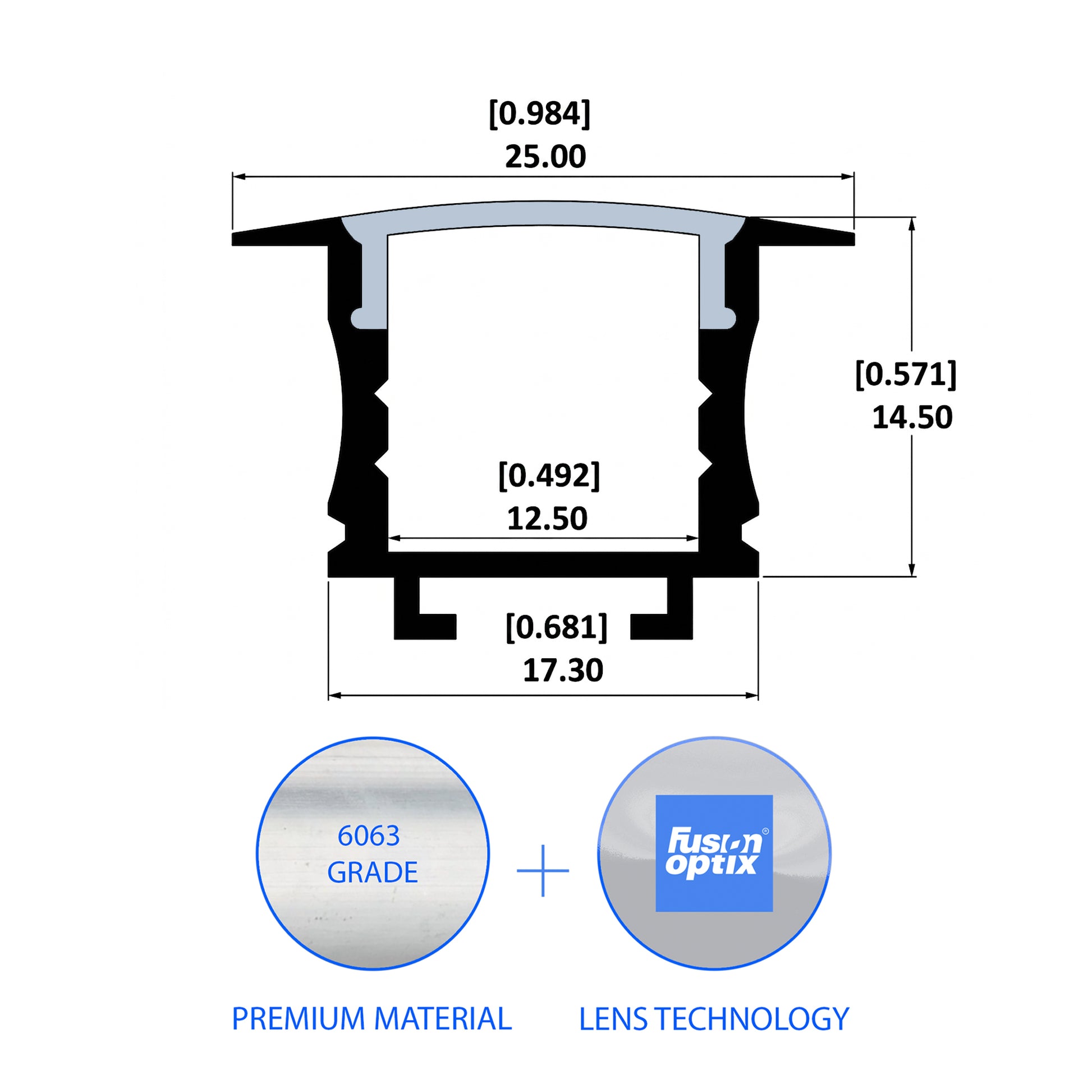

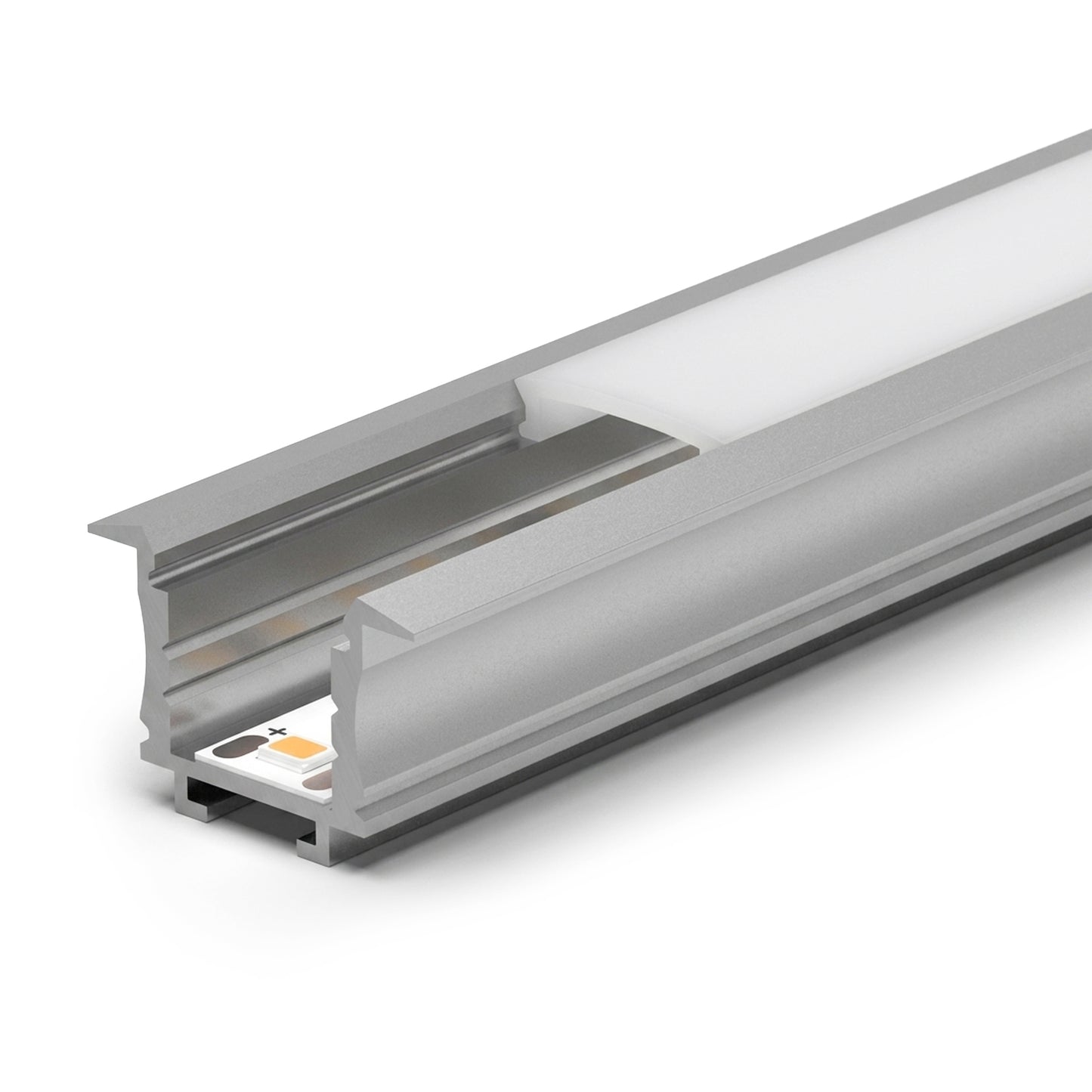

C1019 Recessed LED Integration System Wide-Flange Architectural Recessed Channel for LED Tape Integration The C1019 operates as a wide-flange fixture assembly architecture. It establishes a secure mechanical load path for recessed architectural alignments. The channel connects flexible LED tape directly to the internal building substrate, and it acts as a high-capacity platform for the lighting system. This integration node transforms raw electrical components into a permanent recessed lighting feature. The wide-flange structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for linear lighting arrays while concealing the installation cut line. Engineering Function The system protects LED engine performance through continuous passive thermal dissipation. The 25.00 mm by 14.50 mm 6063-T5 aluminum structure conducts heat away from the embedded light source, and this process stabilizes junction temperatures. The profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to provide uniform light output, and this optical integration suppresses visible diode imaging. Material and Finish Base Material: Wide-flange 6063-T5 aluminum extrusion Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for wide-flange recessed profiles Installation and Workflow Advantages Secures firmly into architectural cutouts to provide a clean, trim-finished look Conceals rough installation cut lines to improve field consistency Simplifies procurement with field cuttable standard lengths Protects the LED engine from physical damage inside architectural recesses Application Environments Drywall ceilings and walls Architectural wood paneling Custom millwork linear lighting High-end commercial interiors Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 25.00 mm Overall Height 14.50 mm Form Factor Wide-Flange Recessed Specification and Integration Support This wide-flange recessed integration system is specified for architectural projects requiring trim-concealment and stable thermal control. It is engineered for use by custom millworkers and architectural lighting designers and OEM luminaire builders. ⇩ Download C1019 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
