C1017 Surface Mount Channel 15.9mm x 6mm

C1017 Surface Mount Channel 15.9mm x 6mm

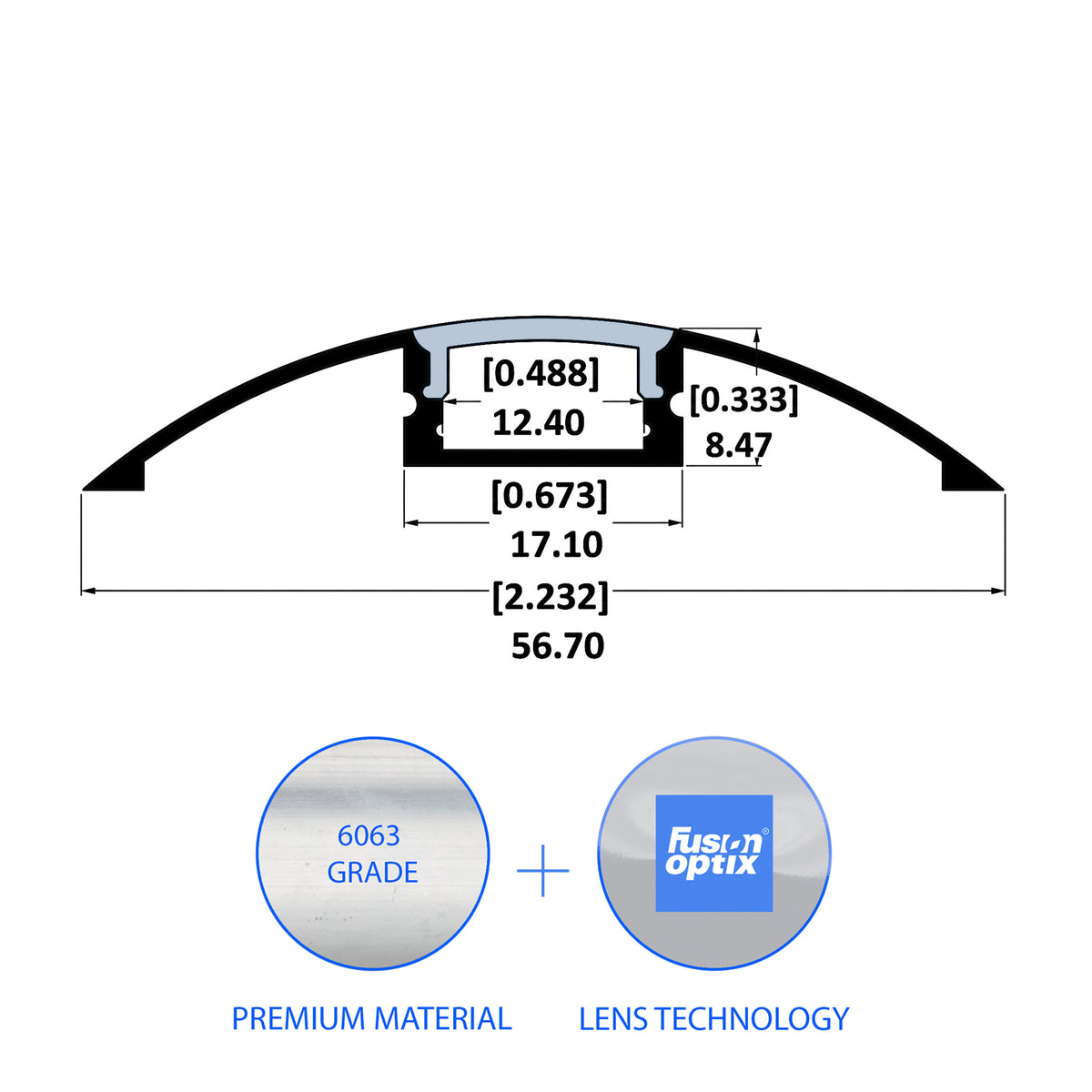

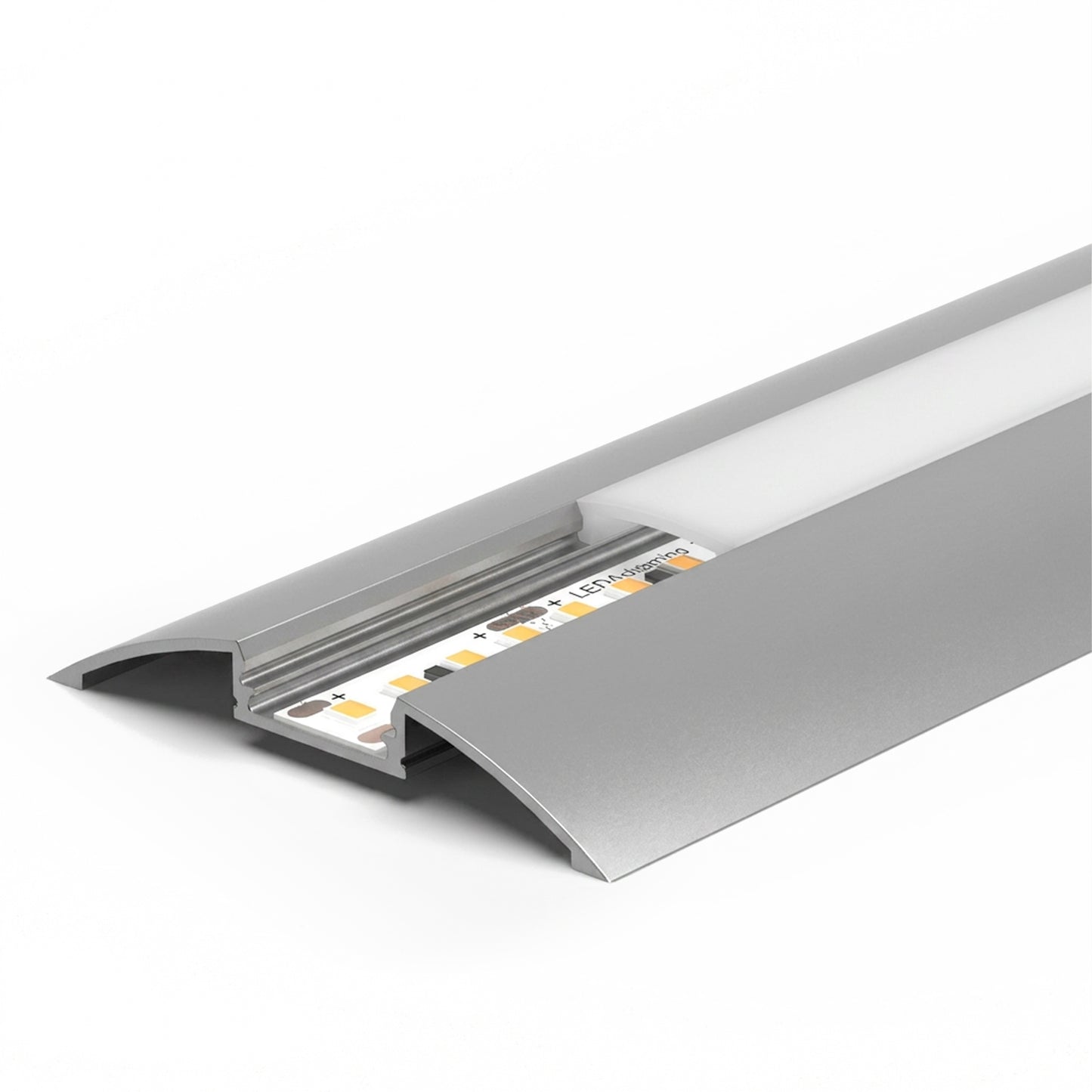

C1017 Surface Mount LED Integration System Wide Sloped Architectural Transition Channel for LED Tape Integration The C1017 operates as a wide architectural transition fixture assembly. It establishes a highly stable mechanical interface engineered to blend directly into the mounting surface. The channel connects flexible LED tape to the building architecture, and it acts as an exceptional platform for the lighting system. This integration node transforms raw electrical components into a permanent and seamless architectural feature. The structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for surface linear arrays. Engineering Function The system protects LED engine performance through superior high-capacity thermal dissipation. The massive 56.70 mm by 17.10 mm 6063-T5 aluminum structure conducts heat away from the light source, and this process stabilizes junction temperatures. The wide sloped profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to deliver focused illumination, and this optical integration guarantees high visual comfort. Material and Finish Base Material: Wide sloped 6063-T5 aluminum extrusion Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for wide sloped profiles Installation and Workflow Advantages Secures firmly to architectural planes to create a smooth structural transition Dissipates high heat loads effectively due to the massive aluminum footprint Simplifies procurement with field cuttable standard lengths Improves field consistency for wide surface mounted lighting arrays Application Environments Architectural ceiling and wall transitions Commercial surface lighting High-end retail display casework Sloped architectural accents Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 56.70 mm Overall Height 17.10 mm Form Factor Wide Sloped Transition Specification and Integration Support This wide sloped surface mount integration system is specified for architectural projects requiring a smooth surface transition and exceptional thermal control. It is engineered for use by OEM luminaire builders and architectural lighting designers and electrical contractors. ⇩ Download C1017 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
