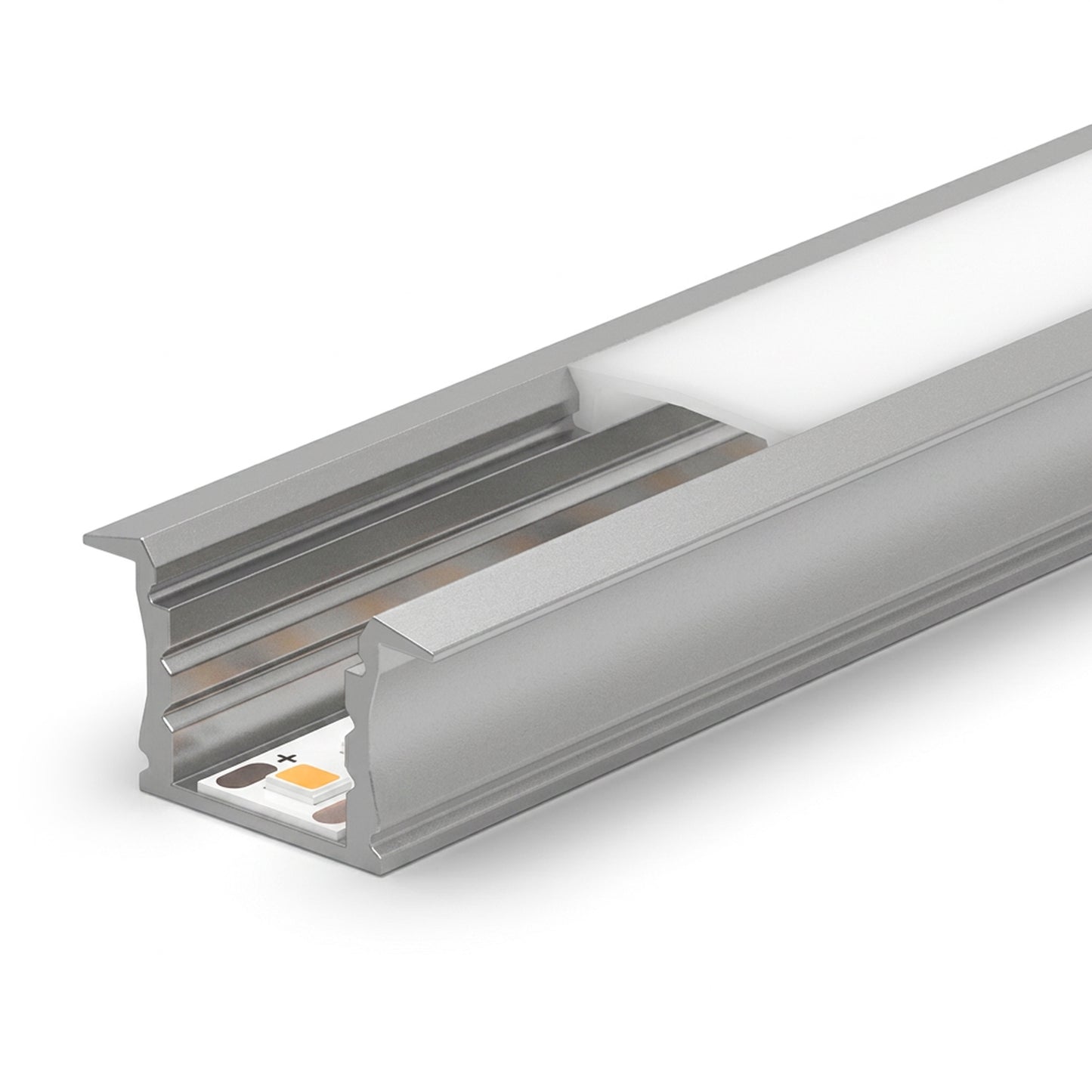

C1013 Recessed Channel 25mm x 14.5mm

C1013 Recessed Channel 25mm x 14.5mm

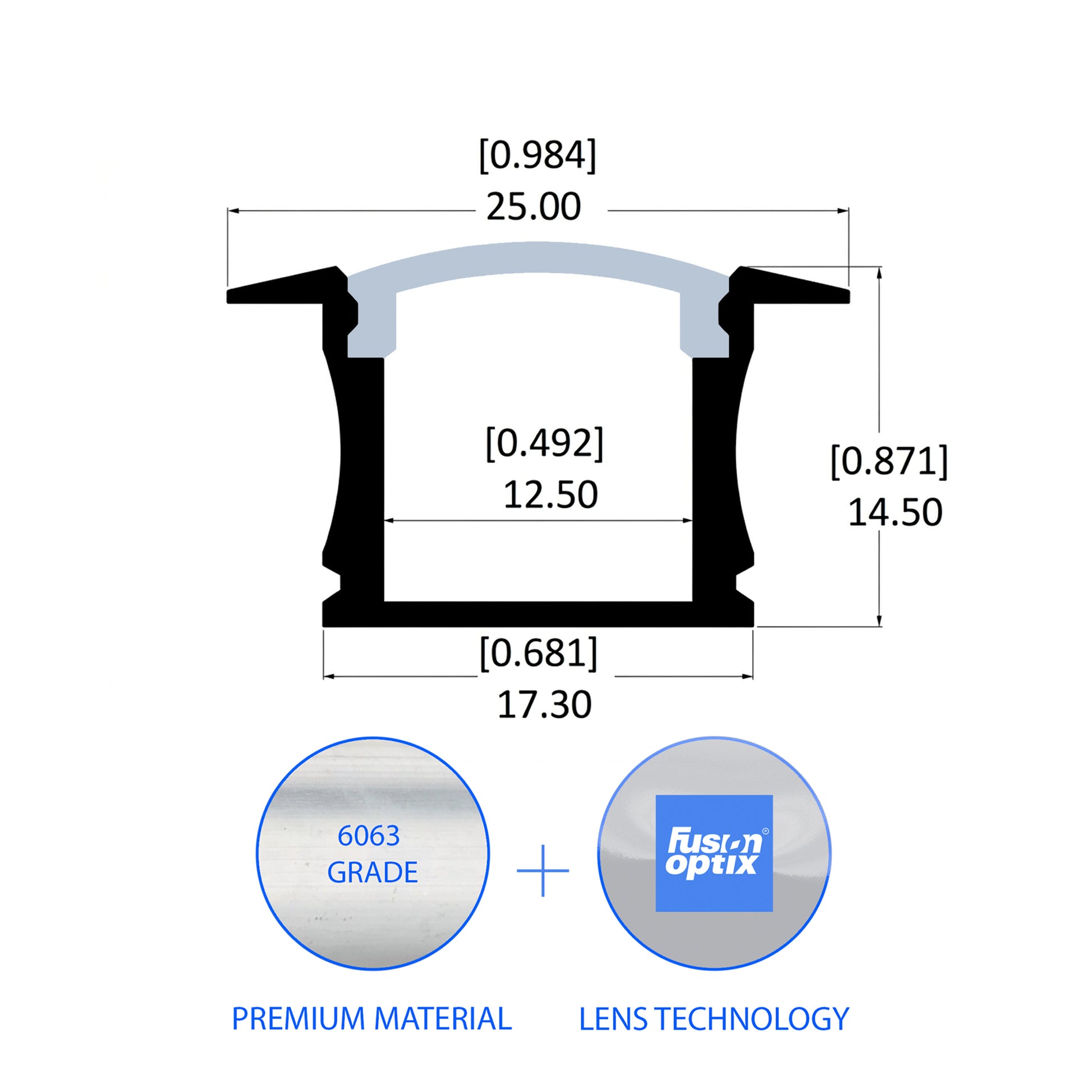

C1013 Recessed LED Integration System Heavy-Duty Architectural Recessed Channel for LED Tape Integration The C1013 operates as a heavy-duty recessed mounting interface. It establishes a secure mechanical load path for demanding architectural alignments. The channel connects flexible LED tape directly to the internal building substrate, and it acts as the primary thermal dissipation architecture for the lighting system. This integration node transforms raw electrical components into a highly stable recessed lighting feature. The heavy-duty structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for complex linear lighting arrays. Engineering Function The system utilizes reliable passive thermal dissipation to maintain LED engine stability. The 25.00 mm by 14.50 mm heavy-duty 6063-T5 aluminum structure conducts heat away from the enclosed light source, and this process significantly extends the luminaire operating life. The profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to focus the light output, and this integration suppresses visible diode imaging. Material and Finish Base Material: Heavy-duty 6063-T5 aluminum extrusion Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for heavy-duty recessed profiles Installation and Workflow Advantages Secures firmly into architectural cutouts to prevent structural deflection Maintains rigid mechanical alignment across long linear recessed runs Simplifies procurement with field cuttable standard lengths Protects the LED engine from physical damage inside architectural cavities Application Environments Commercial drywall ceilings Heavy-duty architectural walls Premium custom millwork recesses High-traffic commercial corridors Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 25.00 mm Overall Height 14.50 mm Form Factor Heavy-Duty Recessed Specification and Integration Support This heavy-duty recessed integration system is specified for architectural projects requiring maximum structural rigidity and stable thermal control in enclosed spaces. It is engineered for use by architectural lighting designers and OEM luminaire builders and electrical contractors. ⇩ Download C1013 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
