C1012 Suspended Channel 20mm x 14.8mm

C1012 Suspended Channel 20mm x 14.8mm

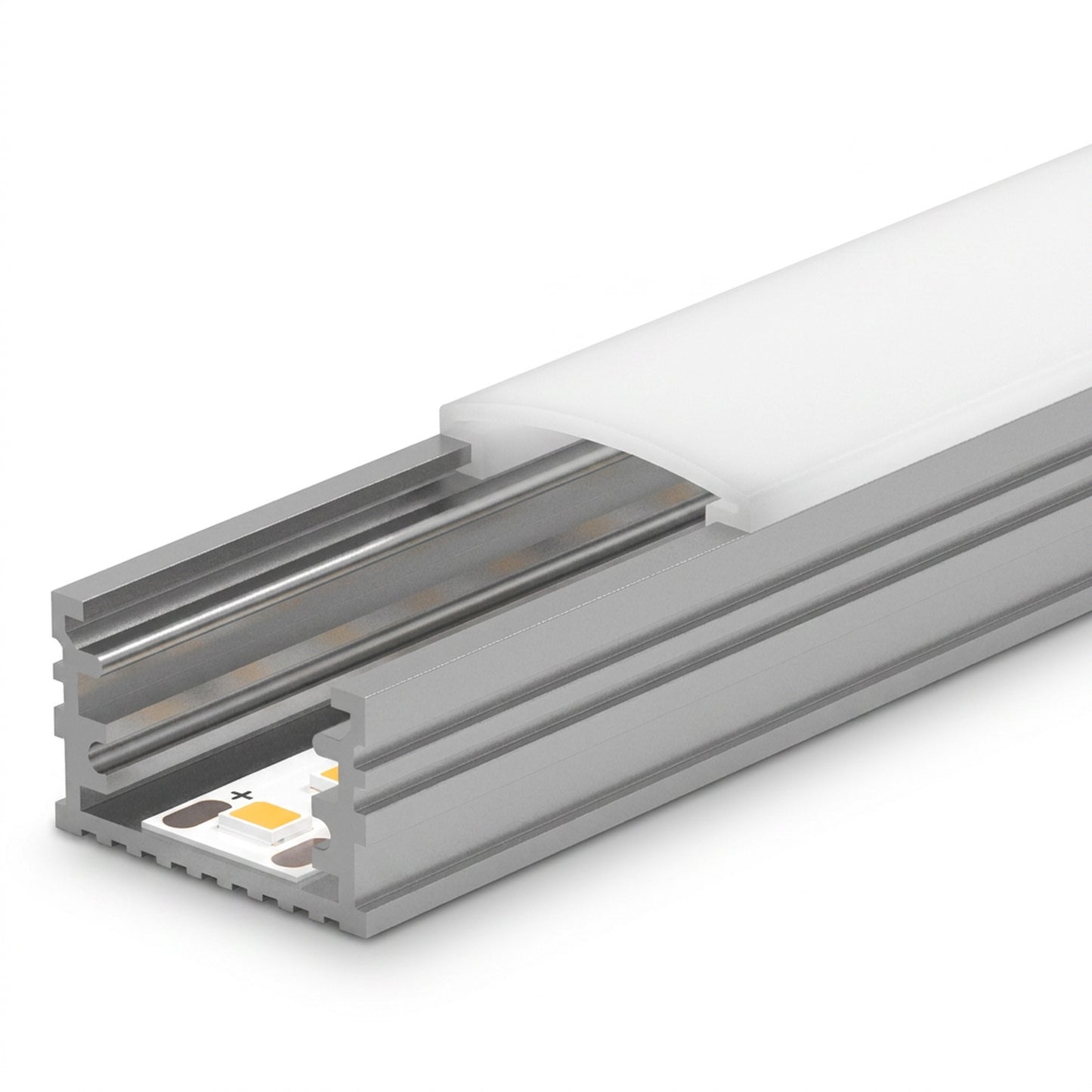

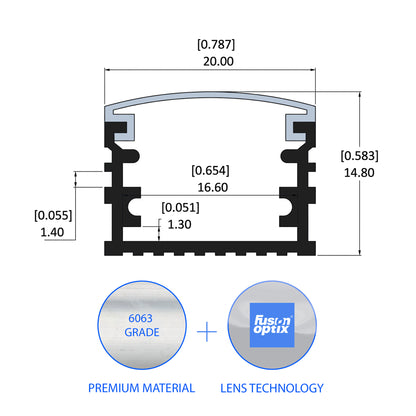

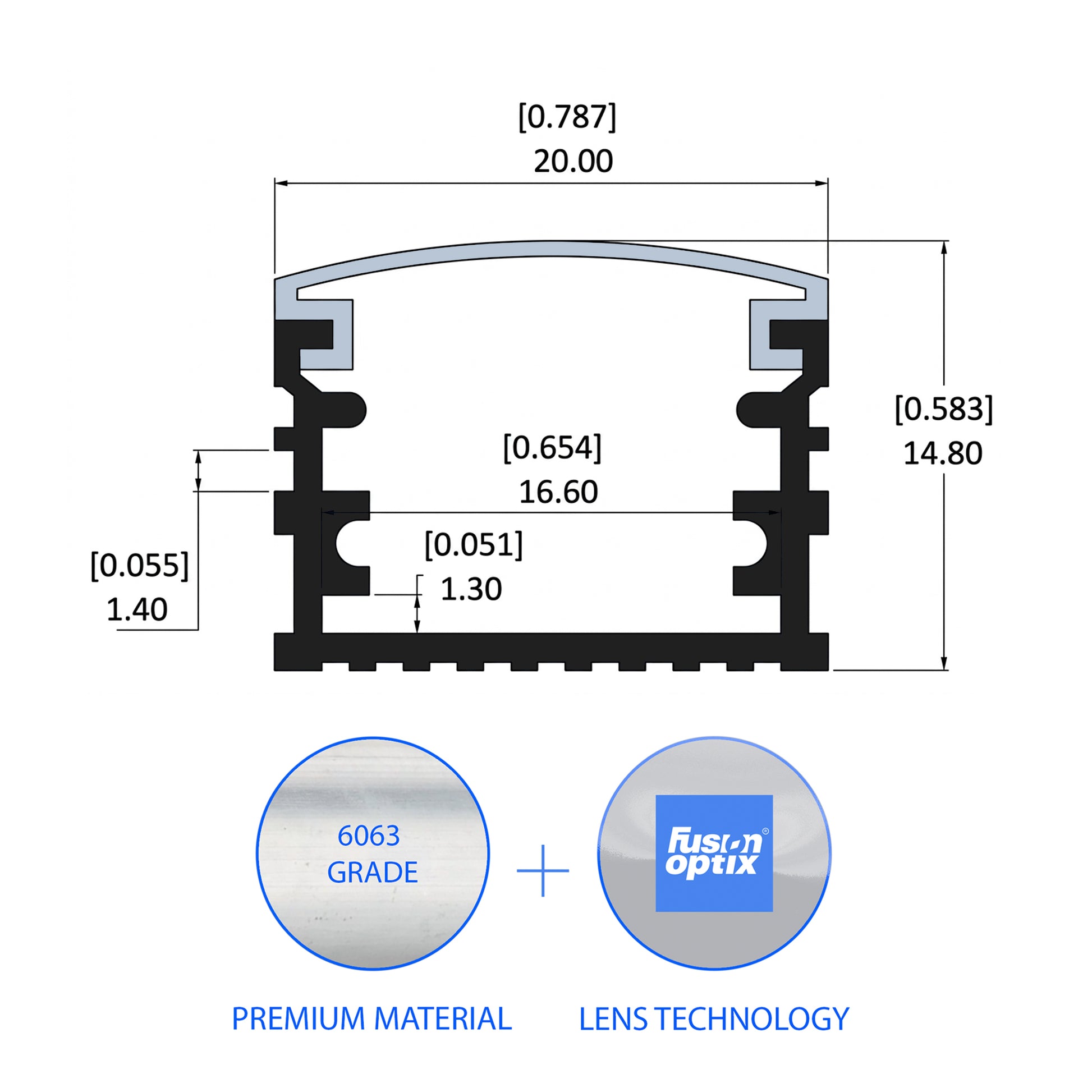

C1012 Surface Mount LED Integration System Robust Architectural Surface Mount Channel for LED Tape Integration The C1012 operates as a robust surface-mounted fixture assembly architecture. It establishes a rigid mechanical load path directly on architectural planes. The channel connects flexible LED tape to the building surface, and it acts as a highly stable platform for the lighting system. This integration node transforms raw electrical components into a permanent architectural lighting feature. The structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for continuous surface linear arrays. Engineering Function The system protects LED engine performance through continuous passive heat dissipation. The 20.00 mm by 14.80 mm 6063-T5 aluminum structure conducts heat away from the light source, and this process stabilizes junction temperatures. The profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to focus light distribution, and this optical integration effectively suppresses visible diode imaging. Material and Finish Base Material: Premium 6063-T5 aluminum extrusion Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for surface profiles Installation and Workflow Advantages Secures directly to architectural planes for exact mechanical alignment Stabilizes high-output LED tape in exposed surface environments Simplifies procurement with field cuttable standard lengths Improves field consistency for long architectural surface layouts Application Environments Commercial office ceilings and walls Exposed architectural planes Premium under cabinet lighting Retail display surfaces Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 20.00 mm Overall Height 14.80 mm Form Factor Surface Architectural Plane Specification and Integration Support This surface mount integration system is specified for architectural projects requiring precise surface alignment and stable thermal control. It is engineered for use by electrical contractors and architectural lighting designers and OEM luminaire builders. ⇩ Download C1012 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
