C1010 Recessed Channel 22mm x 11.7mm

C1010 Recessed Channel 22mm x 11.7mm

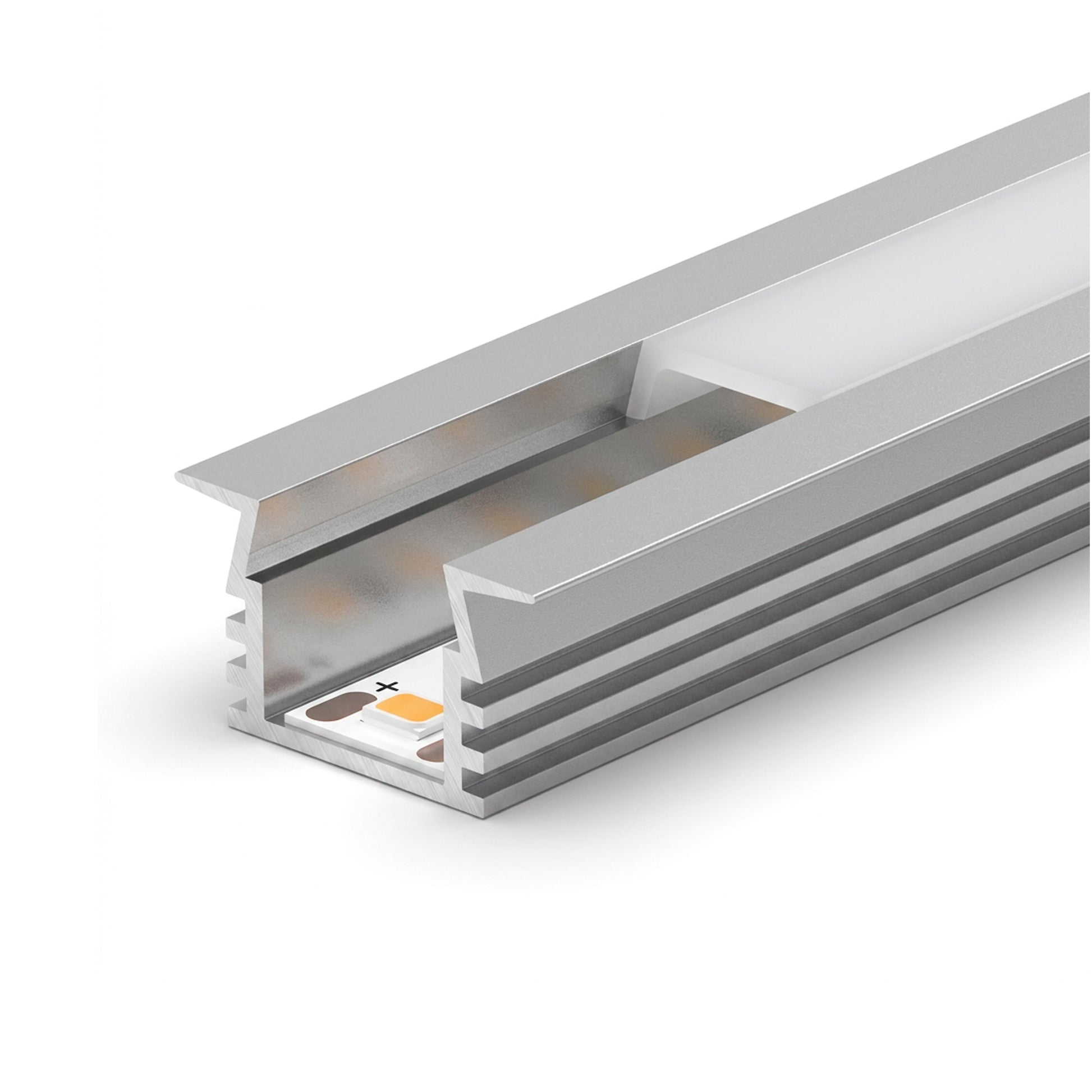

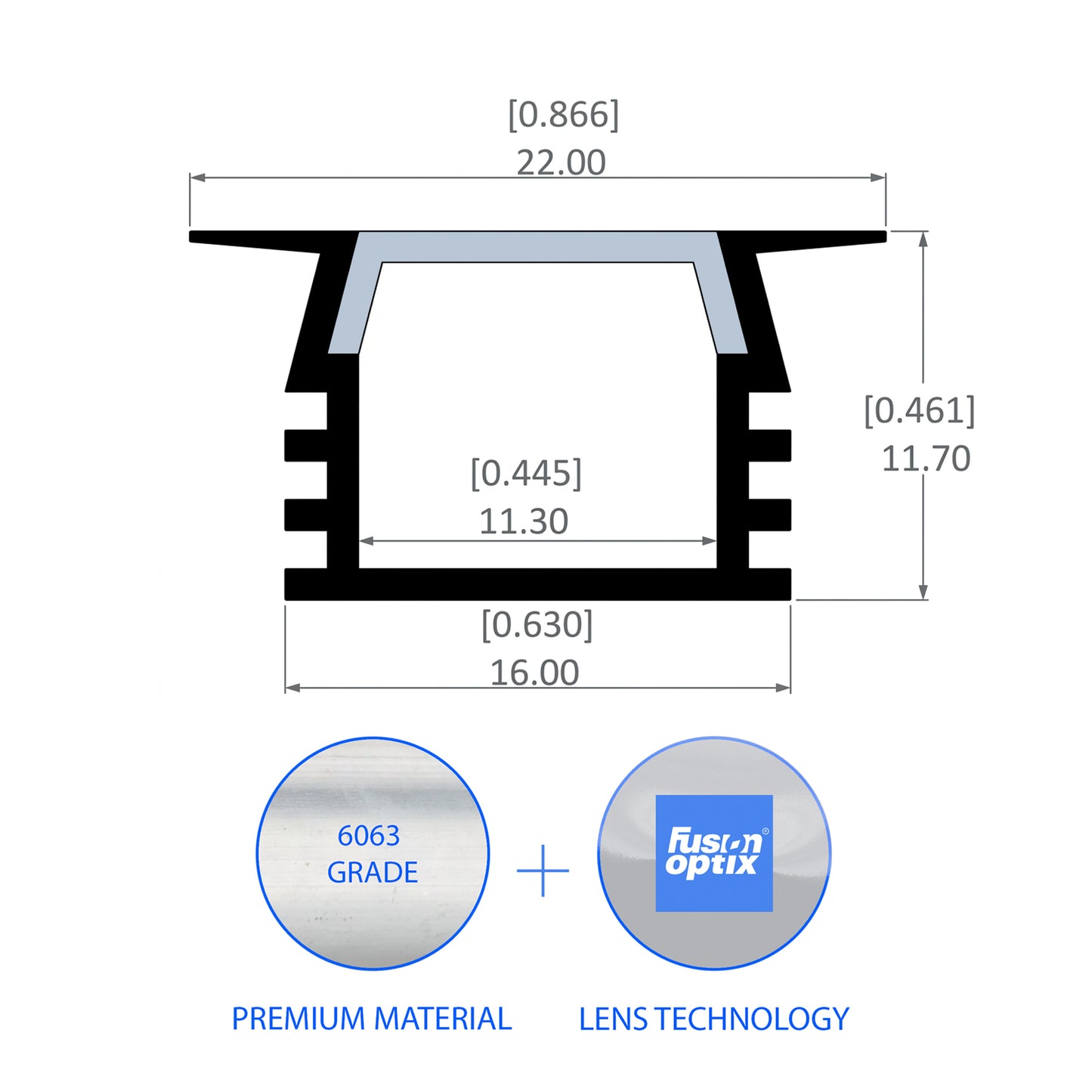

C1010 Recessed LED Integration System Flanged Flush Architectural Recessed Channel for LED Tape Integration The C1010 operates as a flanged mechanical support structure engineered for clean integration into ceilings and walls. It establishes a secure mechanical housing within architectural surfaces. The channel connects flexible LED tape directly to the building substrate, and it acts as a primary thermal management platform for the lighting system. This integration node transforms raw electrical components into a permanent recessed lighting feature. The flanged structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for linear lighting arrays. Engineering Function The system utilizes direct passive thermal transfer to maintain LED engine stability. The 22.00 mm by 11.70 mm 6063-T5 aluminum structure conducts heat away from the light source into the surrounding architectural material, and this process extends the luminaire operating life. The flanged profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to ensure flush visual comfort, and this optical integration minimizes visible diode imaging. Material and Finish Base Material: Flanged 6063-T5 aluminum extrusion Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for recessed profiles Installation and Workflow Advantages Fits securely into architectural cutouts to provide a flush visual finish Covers rough drywall edges with integrated flanges to improve field installation consistency Simplifies procurement with field cuttable standard lengths Protects the LED engine from physical damage inside architectural recesses Application Environments Drywall ceilings and walls Architectural wood paneling Commercial corridor lighting Custom millwork linear lighting Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 22.00 mm Overall Height 11.70 mm Form Factor Flanged Flush Specification and Integration Support This flanged recessed integration system is specified for architectural projects requiring flush mounting and strict thermal control. It is engineered for use by custom millworkers and architectural lighting designers and OEM luminaire builders. ⇩ Download C1010 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
