C1008 Millwork Channel 16mm x 12mm

C1008 Millwork Channel 16mm x 12mm

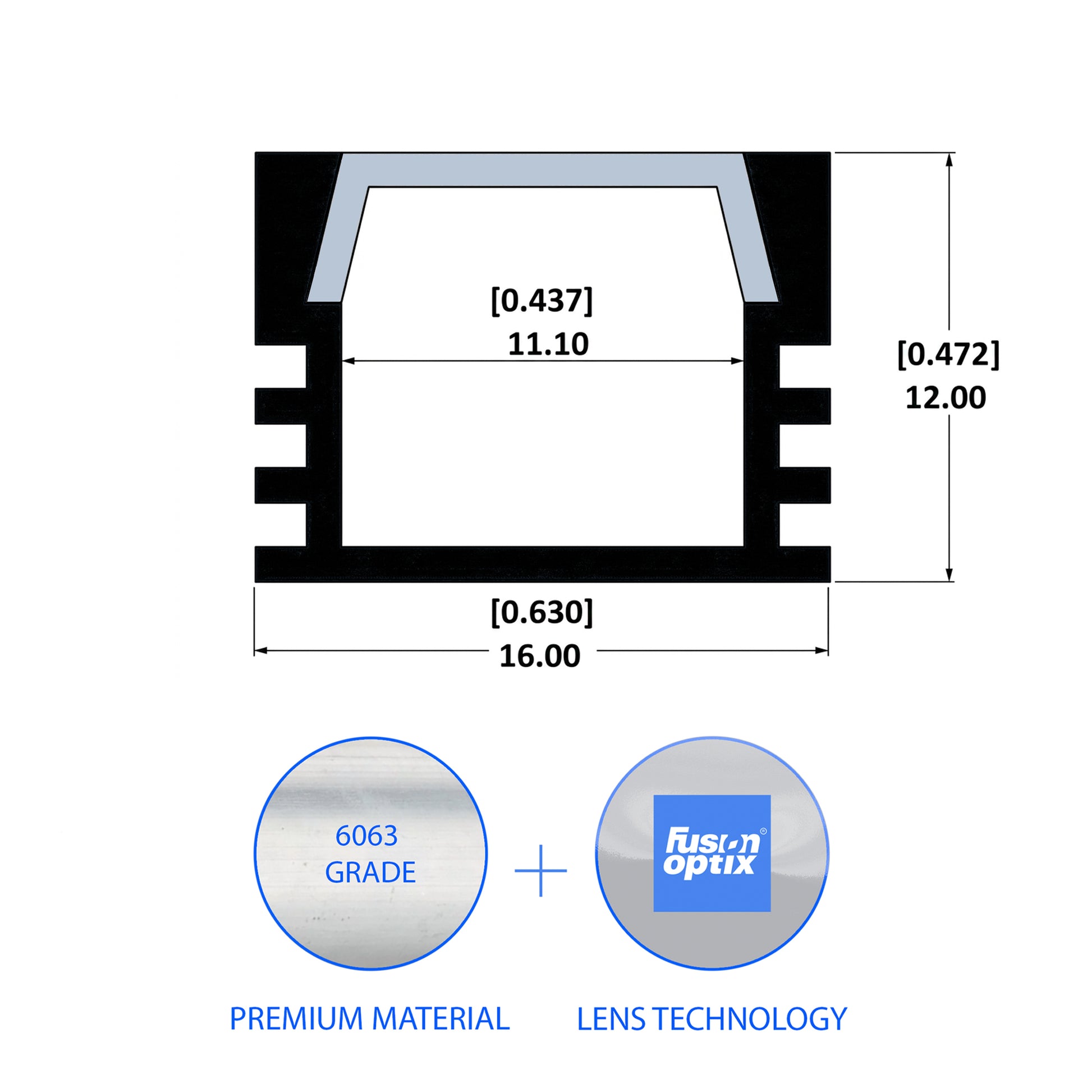

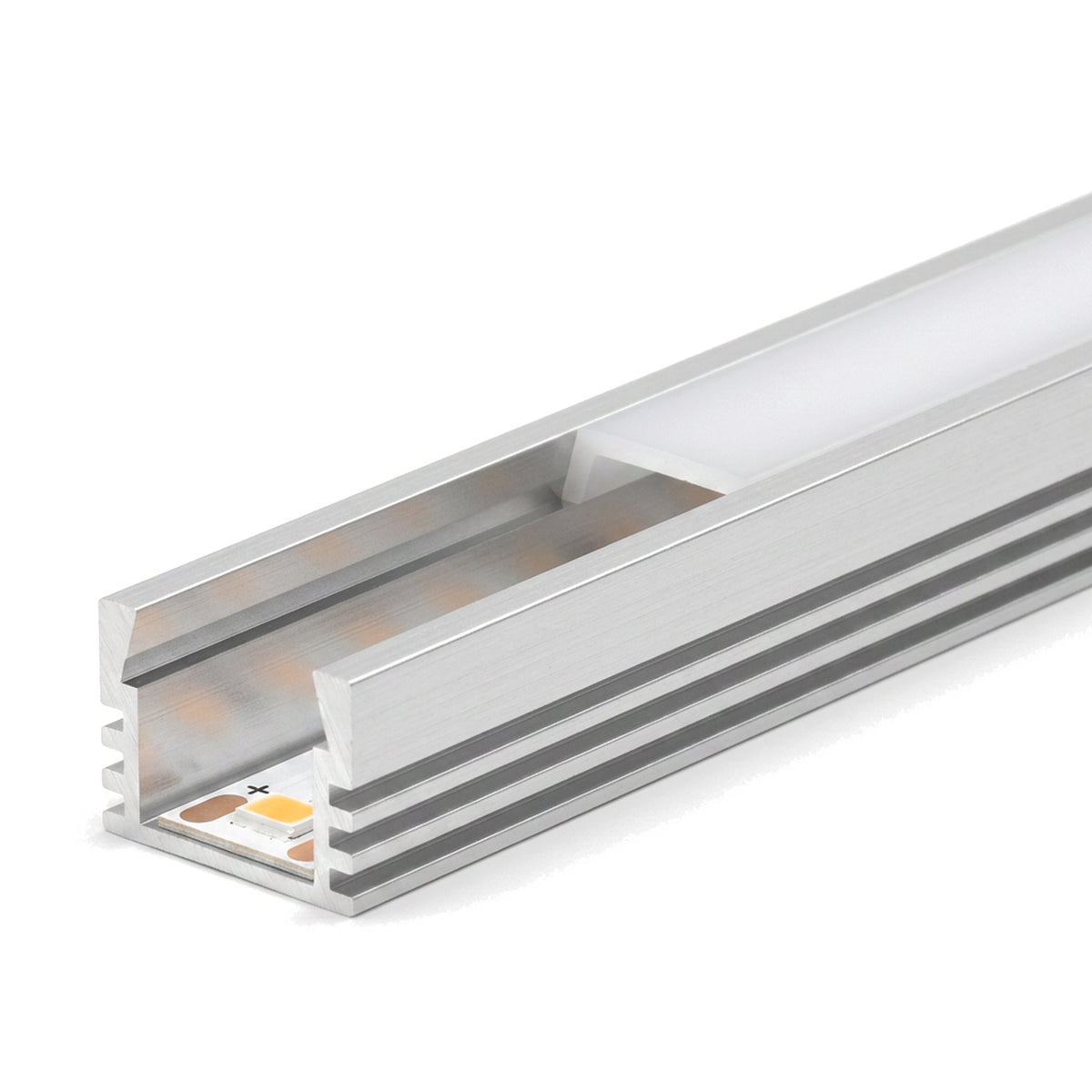

C1008 Millwork LED Integration System Wide-Profile Architectural Millwork Channel for Linear LED Tape Integration The C1008 operates as a wide-profile fixture assembly architecture engineered for custom millwork. It establishes a highly stable mechanical interface for linear LED assemblies, and it acts as an efficient platform. The channel connects flexible LED tape to architectural woodwork. This integration node transforms flexible tape into a permanent architectural feature. The wide structural housing protects the internal electrical infrastructure, and it provides a reliable mechanical footprint for complex linear layouts. Engineering Function The system provides reliable passive thermal dissipation to extend the luminaire operating life. The 16.00 mm by 12.00 mm 6063-T5 aluminum structure conducts heat away from the LED engine, and this process stabilizes overall performance. The wide profile accommodates premium optical layers. It receives controlled diffusion lenses or Fusion Optix systems to shape the visual environment and ensure flawless illumination. Material and Finish Base Material: Wide-profile 6063-T5 aluminum housing Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for wide profiles Installation and Workflow Advantages Secures easily into wide millwork routing for maximum mechanical stability Improves field consistency for premium architectural lighting layouts Simplifies procurement with field cuttable standard lengths Protects the LED engine from physical damage inside custom cabinetry Application Environments Custom millwork linear lighting Wide architectural wall coves Retail display casework Premium under cabinet installations Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 16.00 mm Overall Height 12.00 mm Form Factor Wide-Profile Millwork Specification and Integration Support This wide-profile millwork integration system is specified for premium architectural applications requiring high mechanical stability and top-tier illumination quality. It is engineered for use by custom millworkers and lighting designers and OEM luminaire builders. ⇩ Download C1008 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
