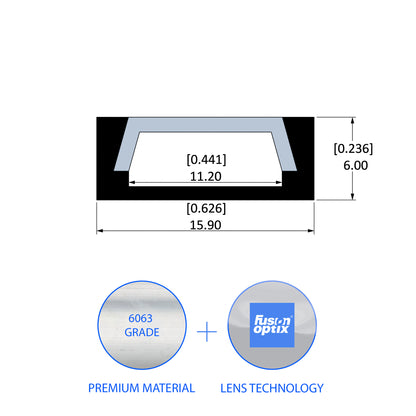

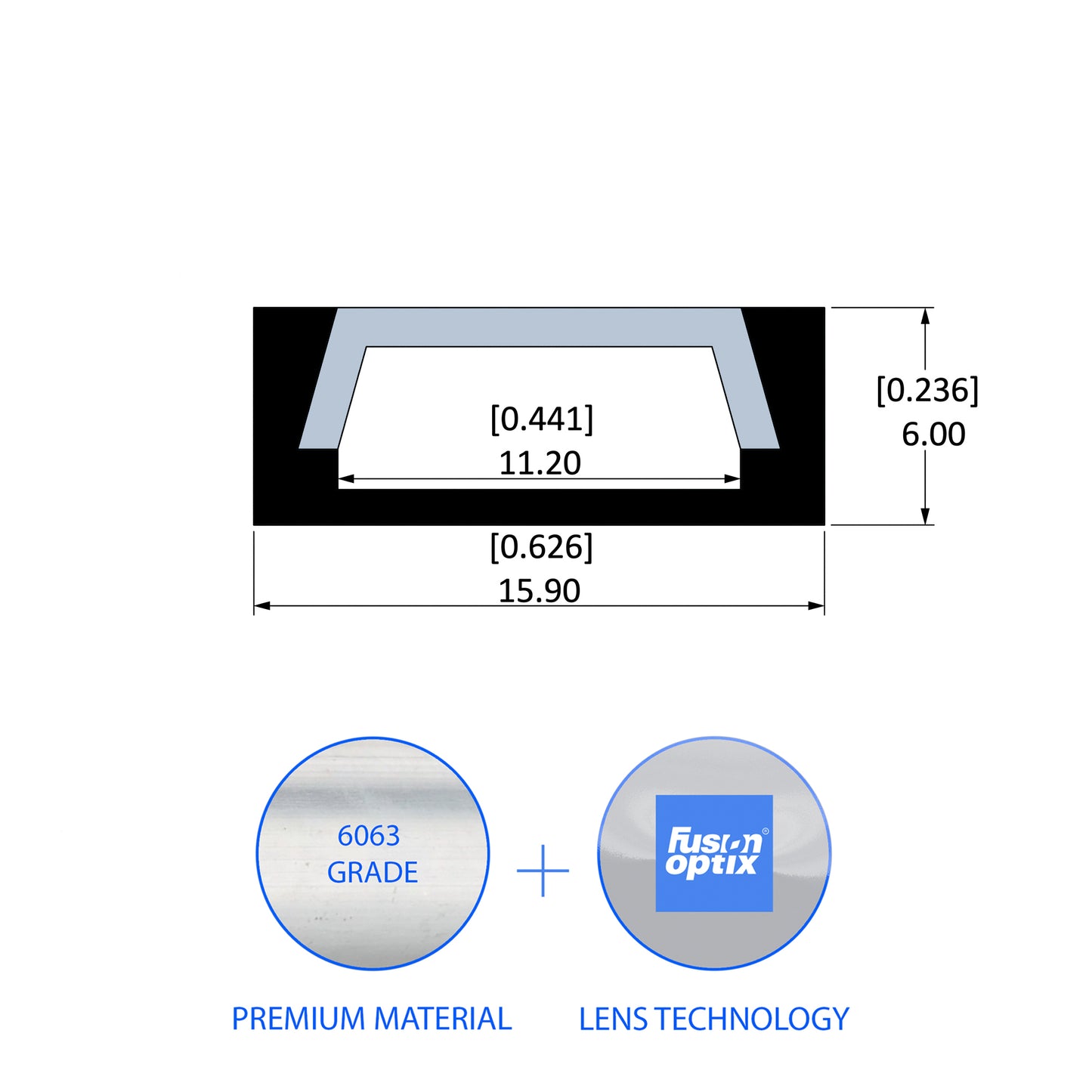

C1007 Surface Mount Channel 15.9mm x 6mm

C1007 Surface Mount Channel 15.9mm x 6mm

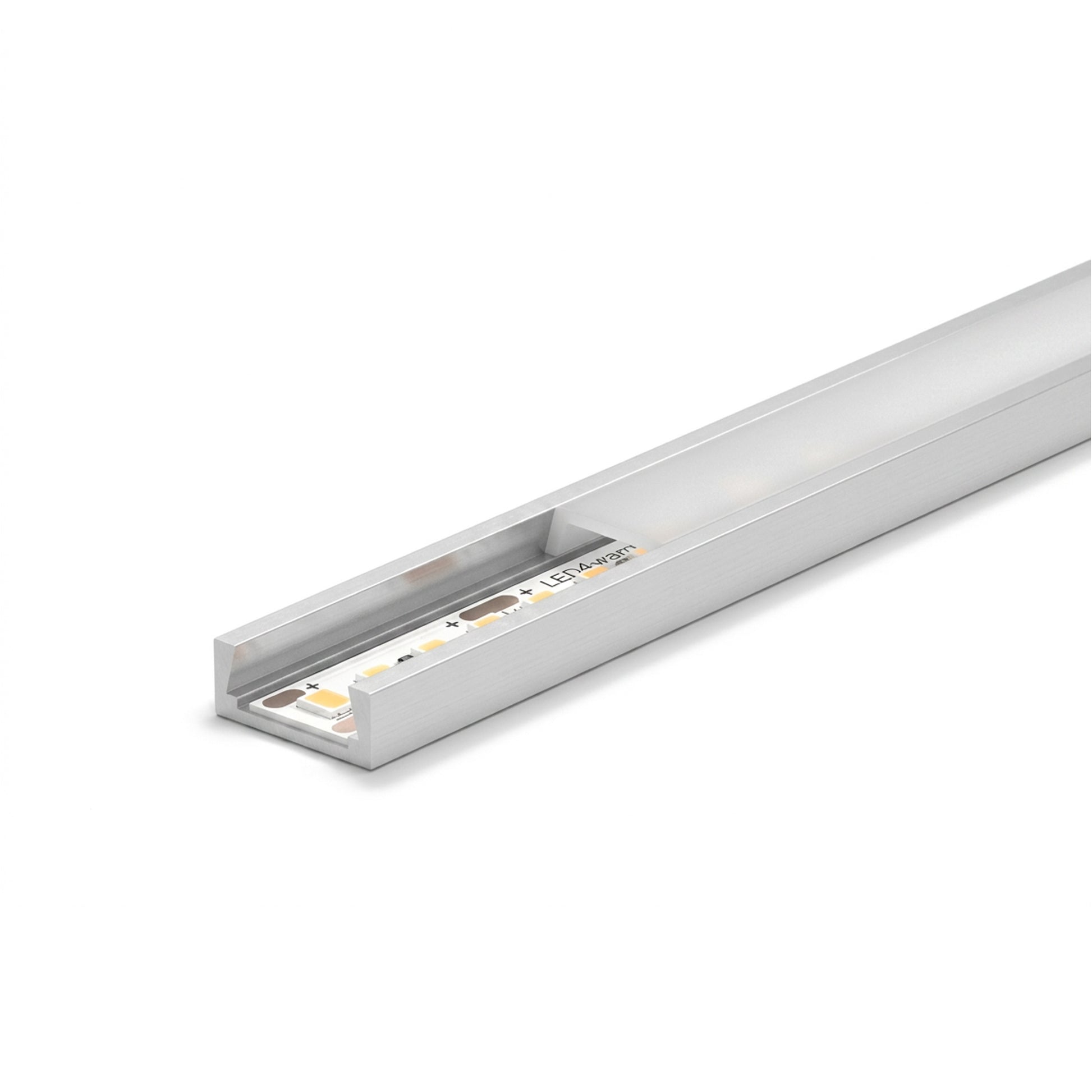

C1007 Surface Mount LED Integration System Low-Profile Architectural Surface Mount Channel for Discrete LED Tape Integration The C1007 operates as a low-profile fixture assembly architecture engineered to minimize visual mass. It establishes a secure mechanical load path directly on architectural planes. The channel connects flexible LED tape to the building structure, and it provides an essential platform for the lighting system. This integration node turns raw electrical components into a discrete linear lighting feature. The structural housing protects the internal electrical infrastructure, and it provides consistent installation geometry across commercial projects. Engineering Function The system safely controls LED junction temperatures through passive heat dissipation. The low-profile 6063-T5 aluminum structure extracts heat from the LED engine, and this action stabilizes performance in surface mounted applications. The channel receives controlled diffusion lenses or Fusion Optix systems. This optical integration ensures smooth light distribution, and it minimizes diode imaging in highly visible environments. Material and Finish Base Material: Low-profile 6063-T5 aluminum structure Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for surface integration Installation and Workflow Advantages Secures tightly to flat surfaces to ensure mechanical stability Reduces visual footprint for highly discrete lighting applications Simplifies procurement with field cuttable standard lengths Improves field consistency for linear surface mounted layouts Application Environments Under cabinet task lighting Commercial office surface mounts Low-clearance retail shelving Architectural ceiling and wall accents Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 15.90 mm Overall Height 6.00 mm Form Factor Low-Profile Surface Specification and Integration Support This surface mount integration system is specified for architectural applications requiring minimal visual mass and reliable thermal control. It is engineered for use by OEM lighting manufacturers and architectural lighting designers and electrical contractors. ⇩ Download C1007 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
