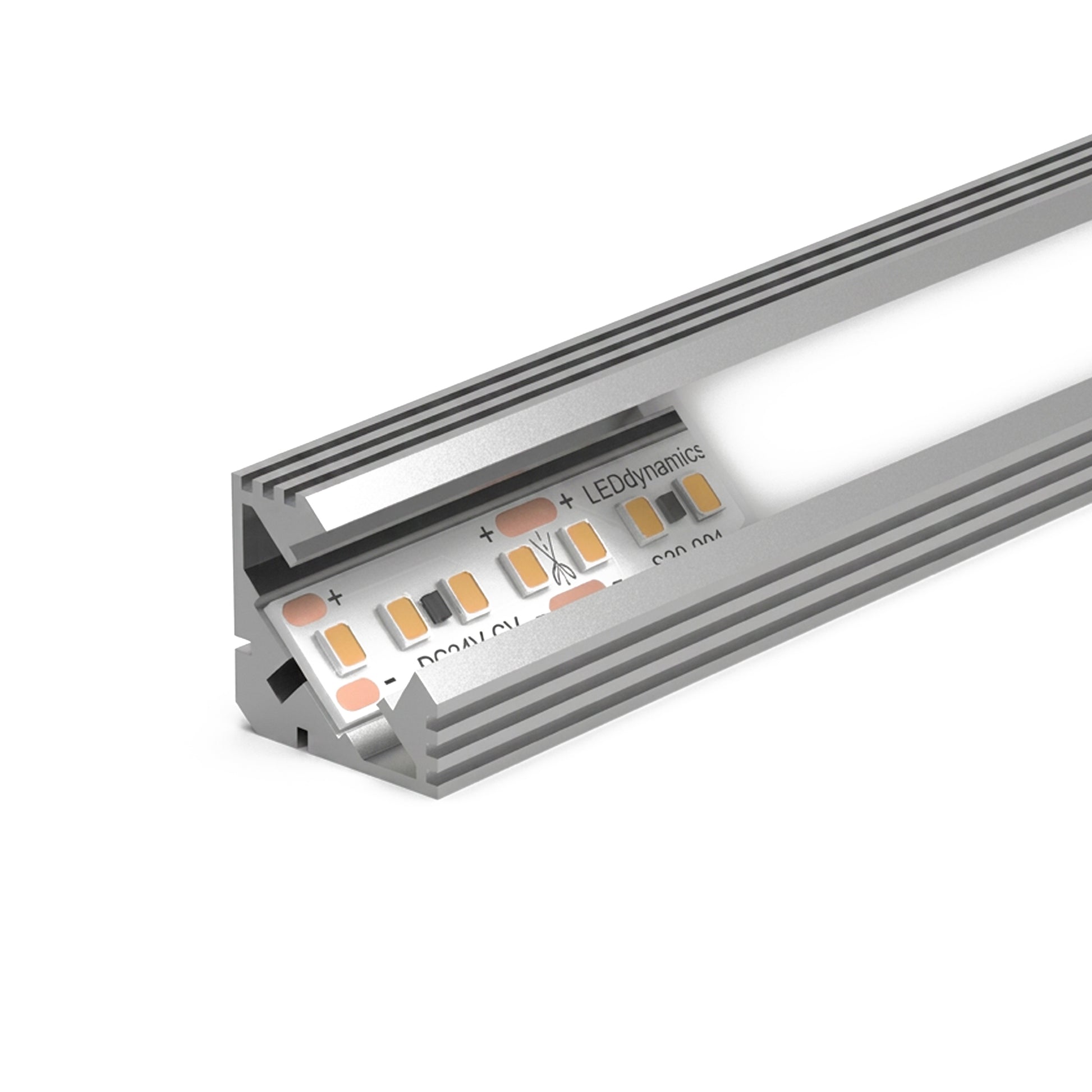

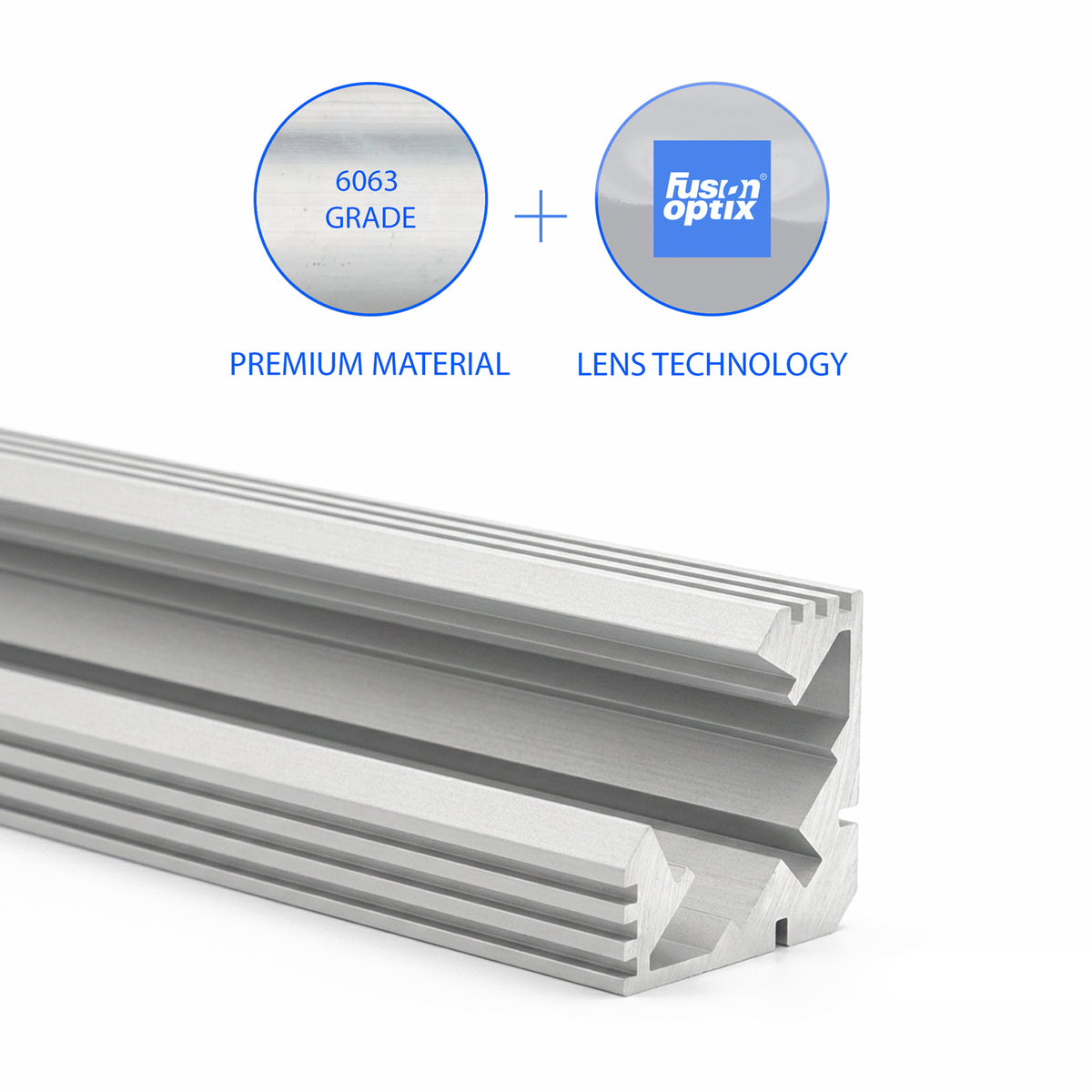

C1006 Corner LED Integration System Heavy-Duty 45 Degree Architectural Corner Channel for LED Tape Integration The C1006 operates as a heavy-duty fixture assembly architecture. It establishes a secure mechanical load path in 45 degree corner applications. The channel connects flexible LED tape directly to the architectural structure, and it acts as an expanded thermal management platform for the complete lighting system. This integration node turns raw electrical components into a rigid corner lighting system. The heavy-duty housing protects the internal electrical infrastructure, and it standardizes installation geometry across large commercial environments. Engineering Function The system utilizes an expanded passive heat sink capacity to control junction temperatures. The 19.00 mm by 19.00 mm 6063-T5 aluminum structure conducts heat away from the light source, and this action extends the luminaire operating life. The channel focuses light at a precise 45 degree angle. It integrates with controlled diffusion lenses or Fusion Optix beam shaping systems, and this integration completely eliminates visible diode imaging. Material and Finish Base Material: Heavy-duty 6063-T5 aluminum extrusion Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate heavy-duty end caps and mounting hardware Installation and Workflow Advantages Secures heavy-duty linear layouts effectively in corner transitions Increases thermal reliability for high-output systems in commercial spaces Simplifies procurement with field cuttable standard lengths Reduces installation time for precise 45 degree optical alignment Application Environments Commercial ceiling and wall corners Retail shelving and display systems Heavy-duty architectural coves Industrial display casework Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 19.00 mm Overall Height 19.00 mm Mounting Angle 45 Degrees Form Factor Heavy-Duty Profile Specification and Integration Support This heavy-duty corner integration system is specified for commercial applications requiring expanded thermal capacity and robust 45 degree structural alignment. It is engineered for use by OEM luminaire builders and electrical contractors and architectural lighting specifiers. ⇩ Download C1006 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.
