C1005 Millwork Channel 10mm x 15mm

C1005 Millwork Channel 10mm x 15mm

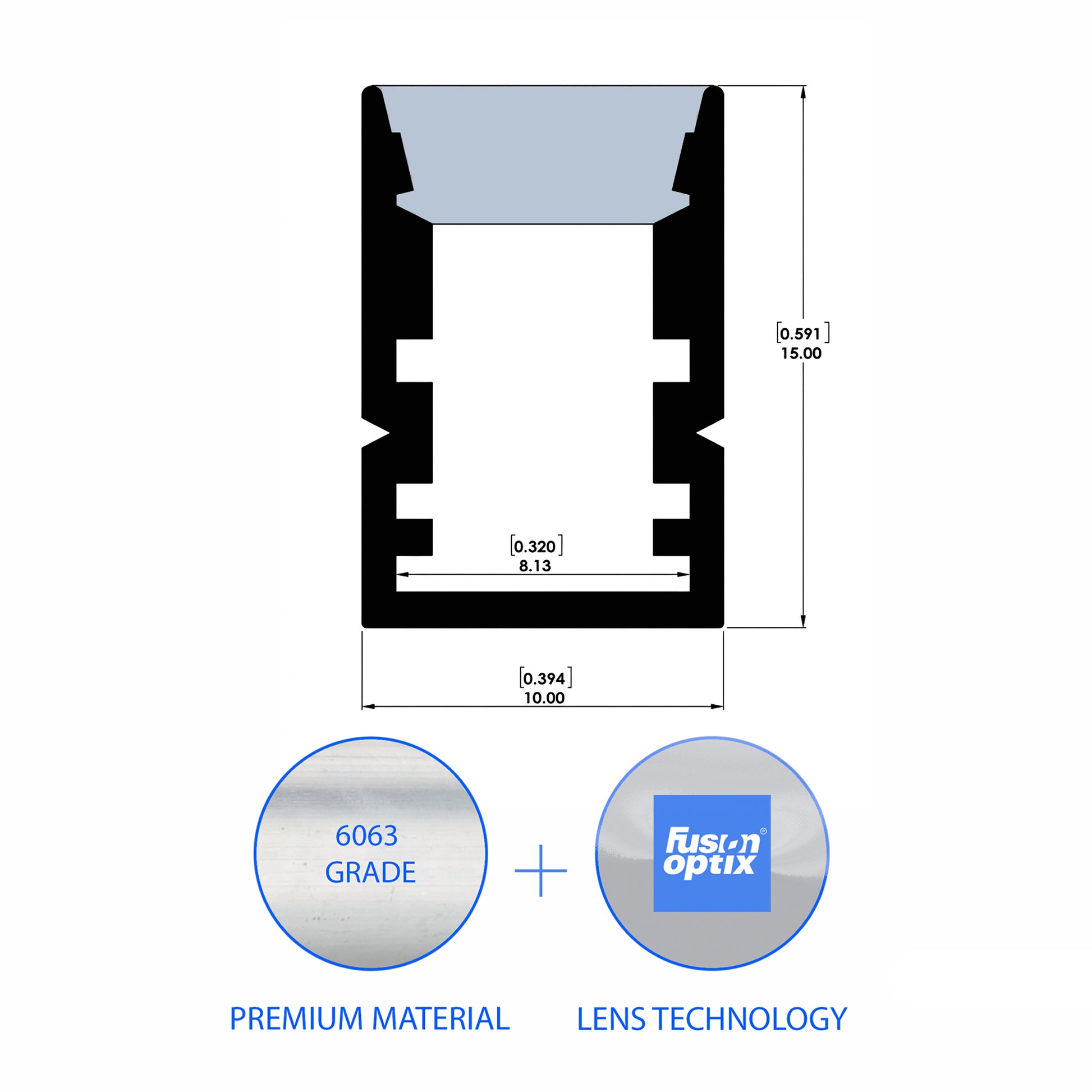

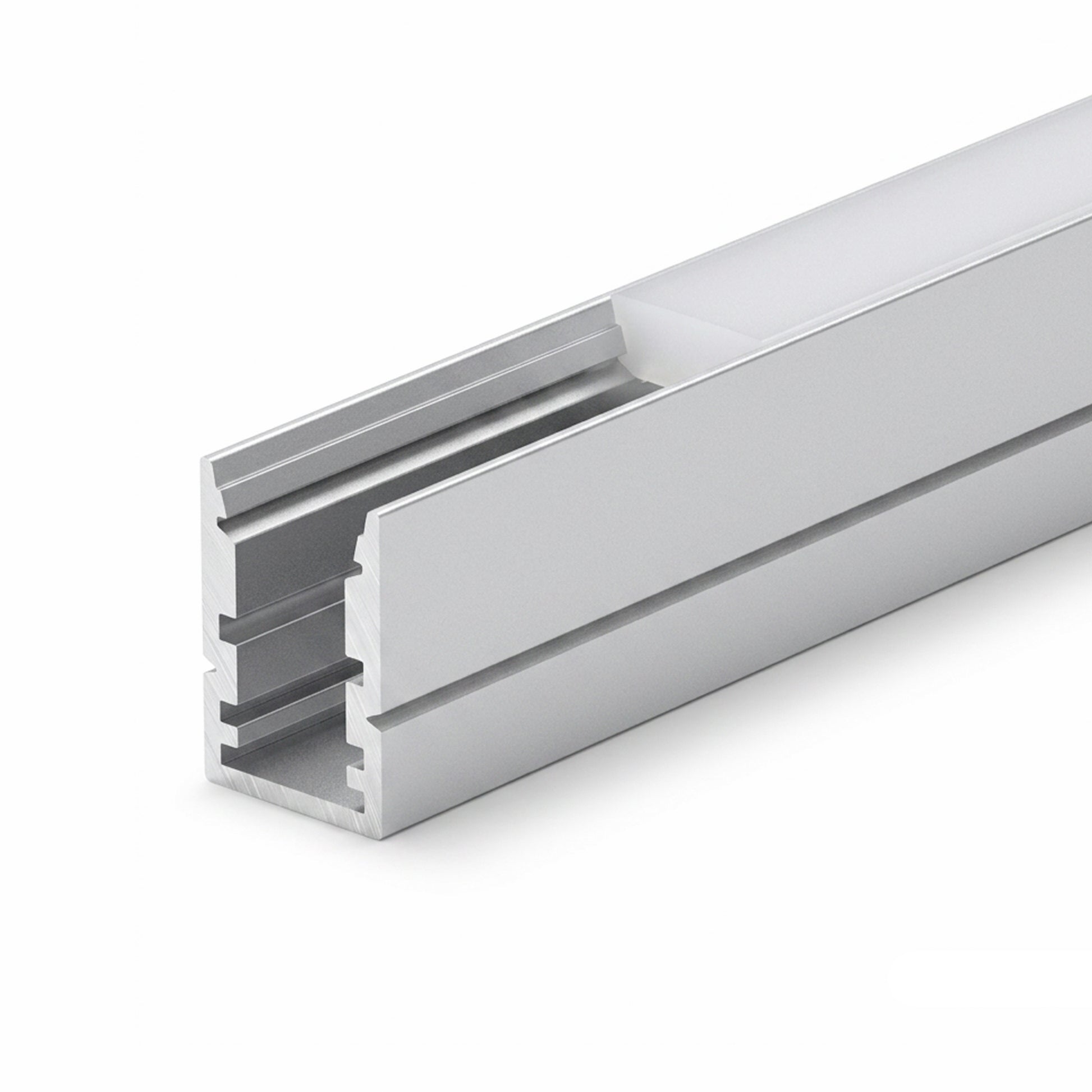

C1005 Millwork LED Integration System Deep Narrow-Format Architectural Millwork Channel for LED Tape Integration The C1005 operates as a deep and narrow fixture assembly architecture. It establishes a robust mechanical load path inside custom millwork. The channel connects flexible LED tape directly to deep architectural grooves, and it provides an enhanced platform for the lighting system. This integration node turns raw LED components into a permanent architectural feature. The deep structural housing secures the electrical infrastructure, and it provides strict mechanical discipline for linear lighting arrays. Engineering Function The system utilizes an expanded passive heat sink capacity to ensure reliable junction temperature control. The deep 10.00 mm by 15.00 mm 6063-T5 aluminum structure conducts heat away from the light source, and this action protects the luminaire over its operating life. The deep channel profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix systems to focus the light, and this geometry suppresses all visible diode imaging. Material and Finish Base Material: Deep 6063-T5 aluminum structure Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for deep profiles Installation and Workflow Advantages Secures tightly into deep millwork slots to improve field installation consistency Increases thermal reliability for high-output tape in enclosed wood environments Simplifies procurement with standard field cuttable lengths Standardizes installation geometry across custom architectural woodwork Application Environments High-end custom millwork Deep display case routing Architectural wall panels Under cabinet lighting systems Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 10.00 mm Overall Height 15.00 mm Form Factor Deep Narrow-Format Specification and Integration Support This deep millwork integration system is specified for architectural projects requiring enhanced thermal capacity and strict optical control. It is engineered for use by custom millworkers and architectural lighting designers and OEM manufacturers. ⇩ Download C1005 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
