C1004 Millwork Channel 10mm x 10mm

C1004 Millwork Channel 10mm x 10mm

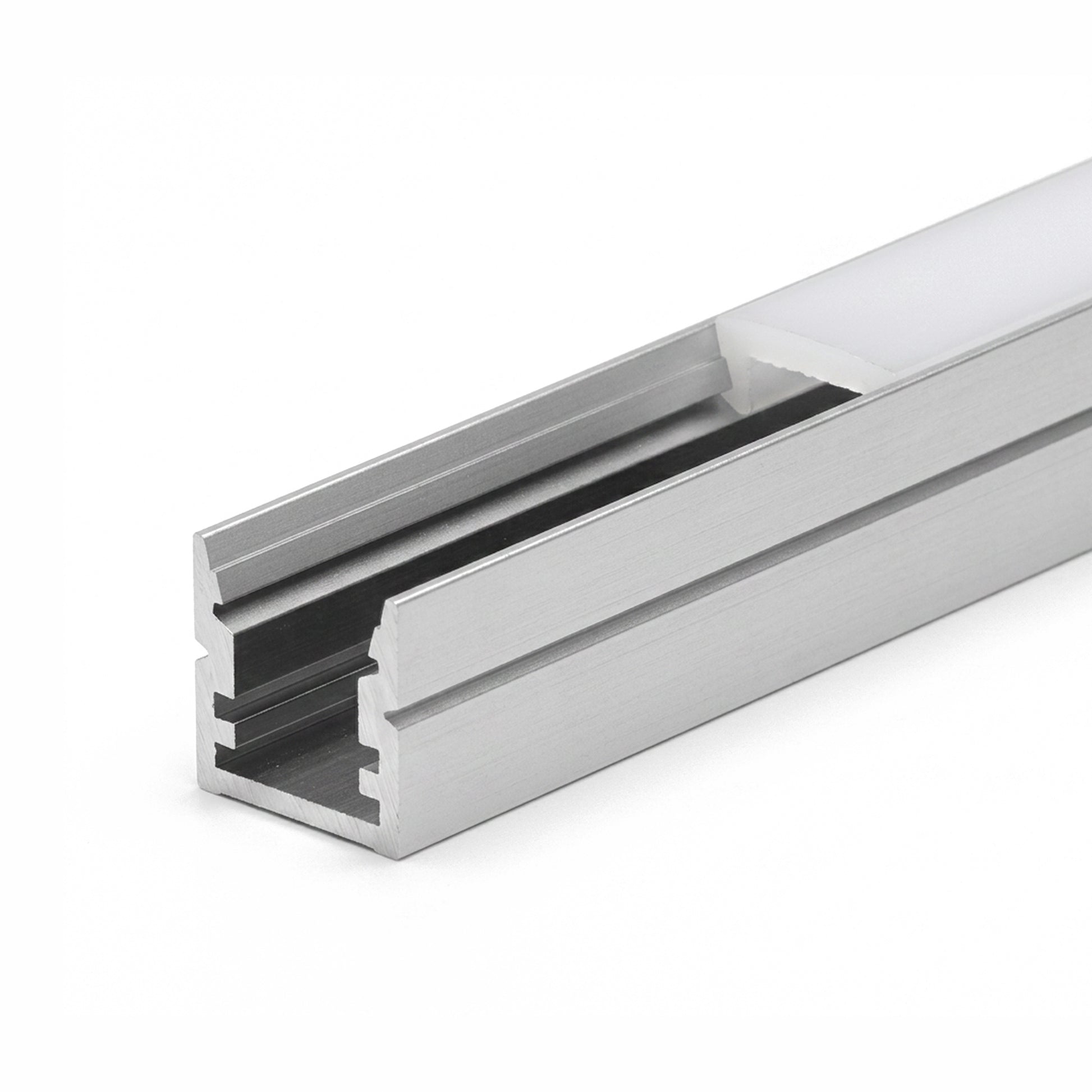

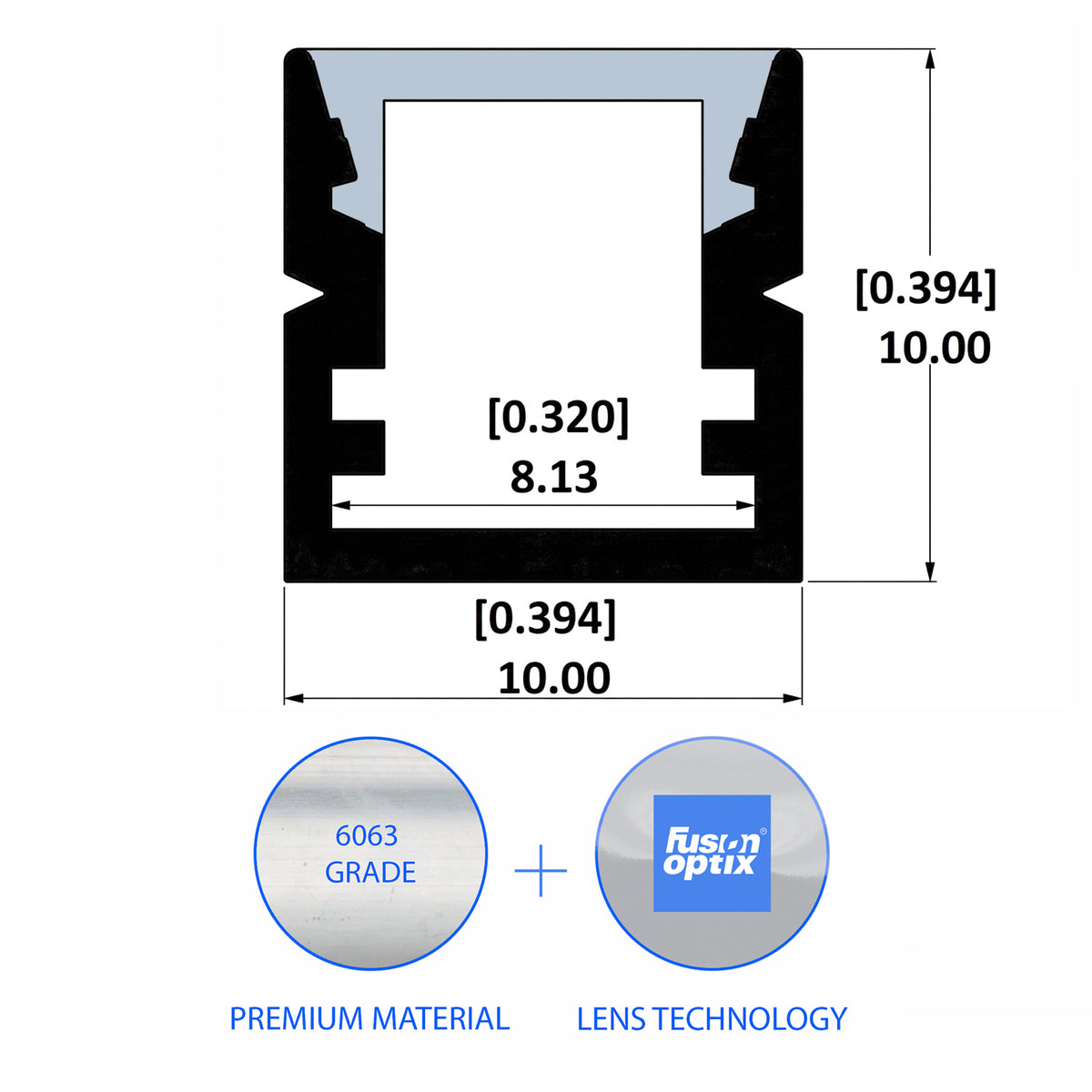

C1004 Millwork LED Integration System Narrow-Format Architectural Millwork Channel for Discrete Lighting Integration The C1004 operates as a narrow-format fixture assembly architecture engineered for specialized millwork integration. It establishes a highly compact mechanical load path within architectural woodwork, and it functions as a reliable platform. The channel connects flexible LED tape directly to custom cabinetry and narrow decorative grooves. This integration node provides exact structural alignment for linear layouts. It protects the internal electrical infrastructure from environmental hazards, and it turns raw components into a stable lighting solution. Engineering Function The system uses direct passive thermal transfer to maintain LED engine stability. The narrow 6063-T5 aluminum housing conducts heat away from the light source, and this action extends the operating life of the luminaire. The deep square profile optimizes the optical interface. It receives controlled diffusion lenses and Fusion Optix systems to completely conceal individual electronic components, and this configuration minimizes visible diode imaging. Material and Finish Base Material: Narrow-format 6063-T5 aluminum housing Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts matching standard LEDmate end caps for narrow profiles Installation and Workflow Advantages Fits into ultra-narrow millwork channels and thin furniture grooves Conceals the light source completely to improve visual comfort Simplifies field cutting with a highly manageable structural footprint Reduces installation variability across large-scale custom cabinetry projects Application Environments Retail display casework Custom furniture and shelving Commercial millwork accents Slim architectural transitions Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 10.00 mm Overall Height 10.00 mm Form Factor Narrow-Format Square Specification and Integration Support This narrow millwork integration system is specified for architectural applications requiring complete visual concealment and precise dimensional control. It is engineered for use by custom furniture manufacturers and architectural designers and electrical contractors. ⇩ Download C1004 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
