C1001 Corner Channel 16mm

C1001 Corner Channel 16mm

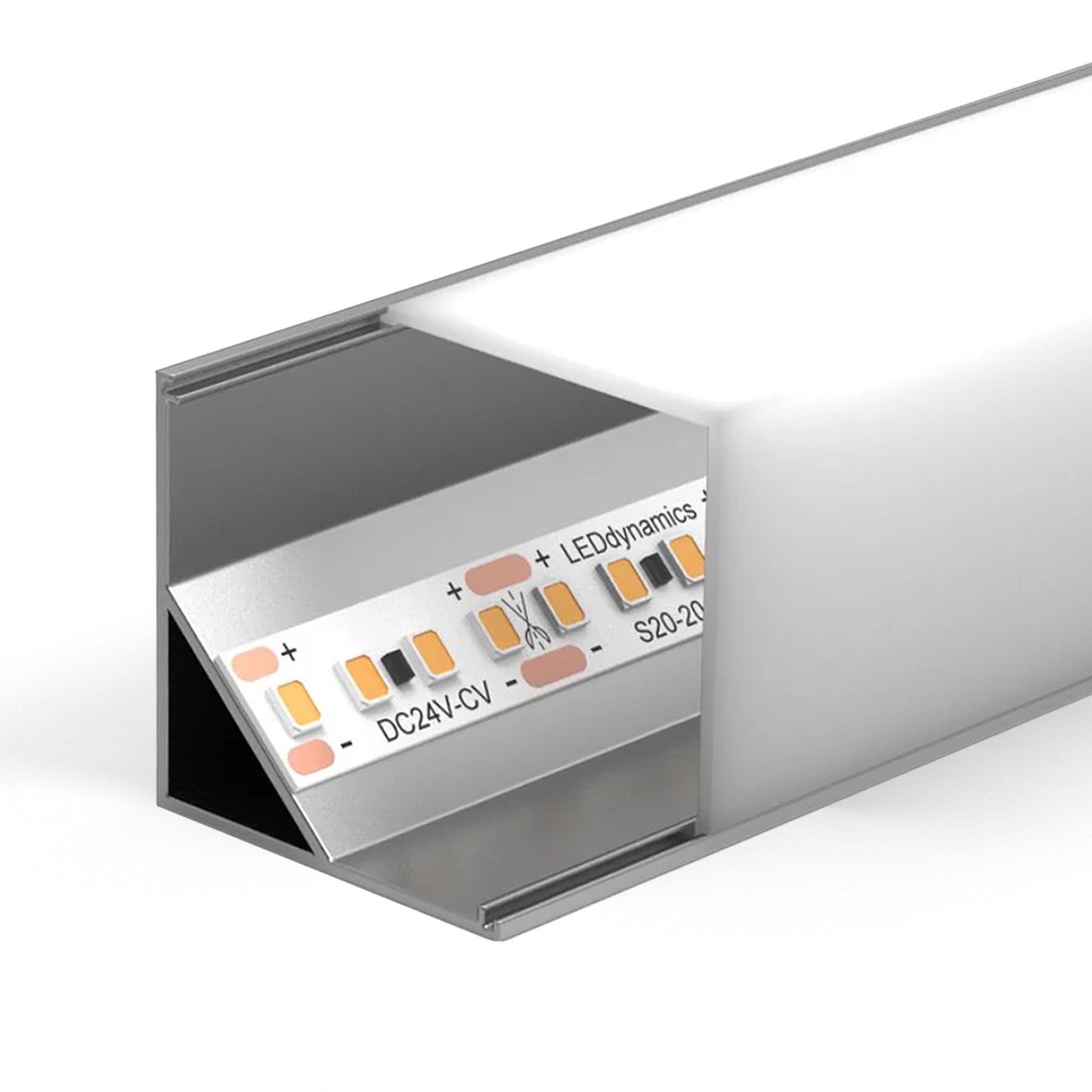

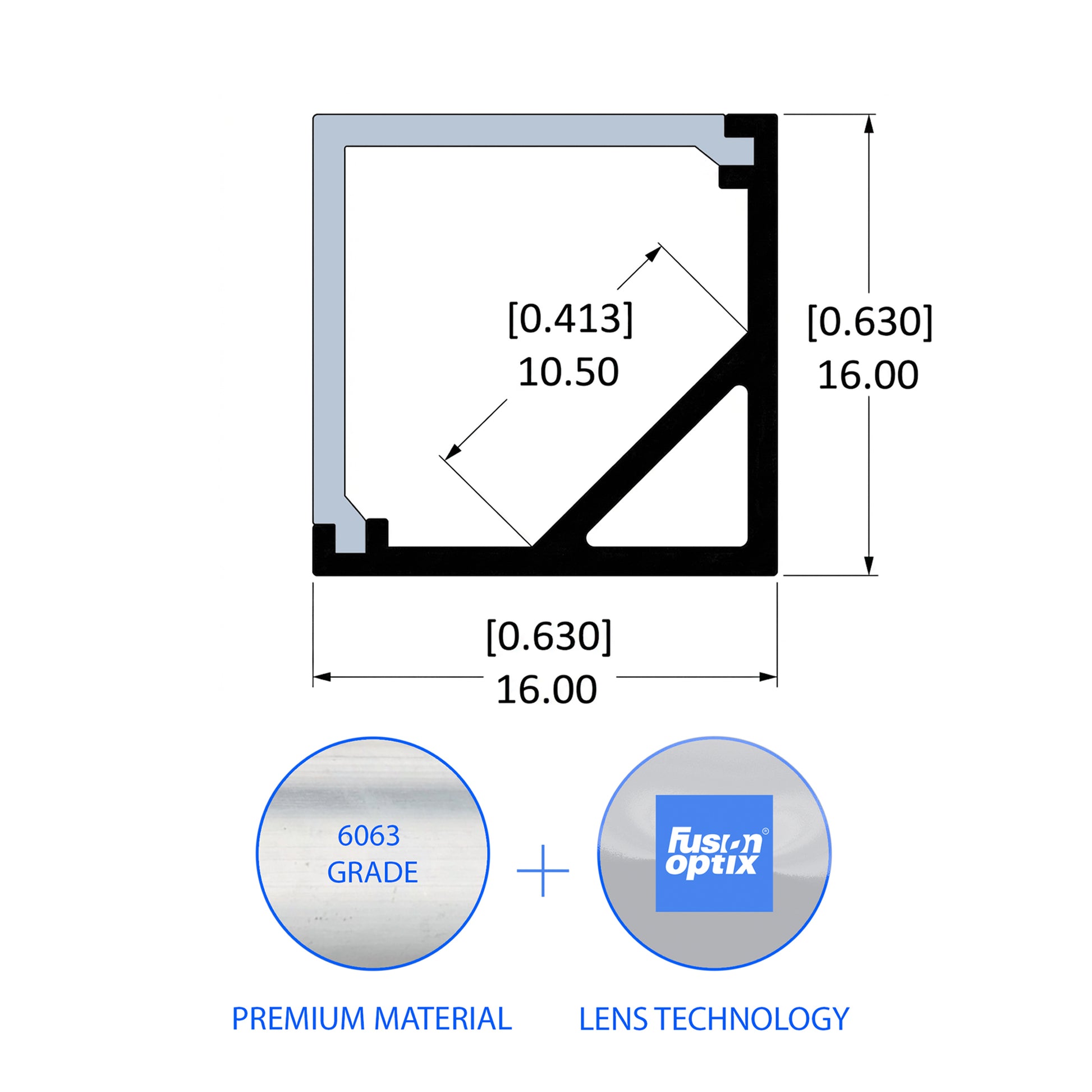

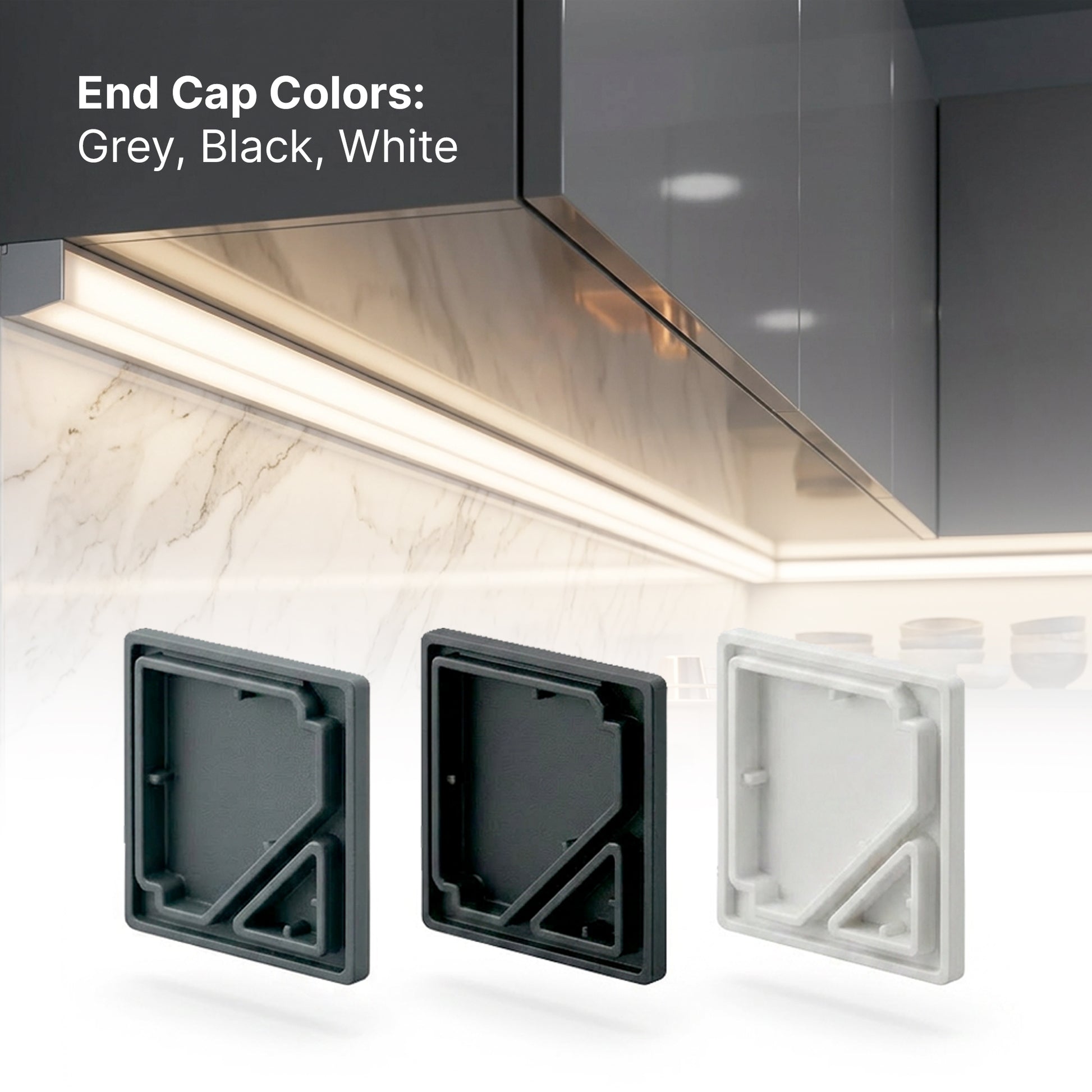

C1001 Corner LED Integration System 45 Degree Architectural Corner Channel for LED Tape Integration The C1001 operates as a complete fixture assembly architecture. It establishes a secure mechanical load path in architectural corner transitions. The channel connects flexible LED tape to the physical building structure, and it provides a platform for the lighting system. This integration node turns raw LED components into a stable architectural feature. The structural housing protects the electrical infrastructure, and it ensures repeatable installation geometry across commercial projects. Engineering Function The system controls LED junction temperatures through passive heat dissipation. The 6063-T5 aluminum profile extracts heat from the LED engine, and it extends the operating life of the luminaire. The channel focuses light distribution at a precise 45 degree angle. It integrates with precision optical layers to shape the beam and suppress diode imaging. Material and Finish Base Material: Premium 6063-T5 aluminum extrusion Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey or Black or White System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series Optical Control: Compatible with standard diffusion lenses and Fusion Optix beam shaping systems Connection Interface: Accepts standard LEDmate end caps and mounting clips Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width 16.00 mm Overall Height 16.00 mm Mounting Angle 45 Degrees Specification and Integration Support This corner integration system is specified for commercial lighting projects requiring precise 45 degree optical alignment and strict thermal control.

Designer’s Note

It is engineered for use by OEM lighting manufacturers and electrical contractors and architectural lighting specifiers..

Specifications
