9/16 T-Bar Twist Clip (TC1)

9/16 T-Bar Twist Clip (TC1)

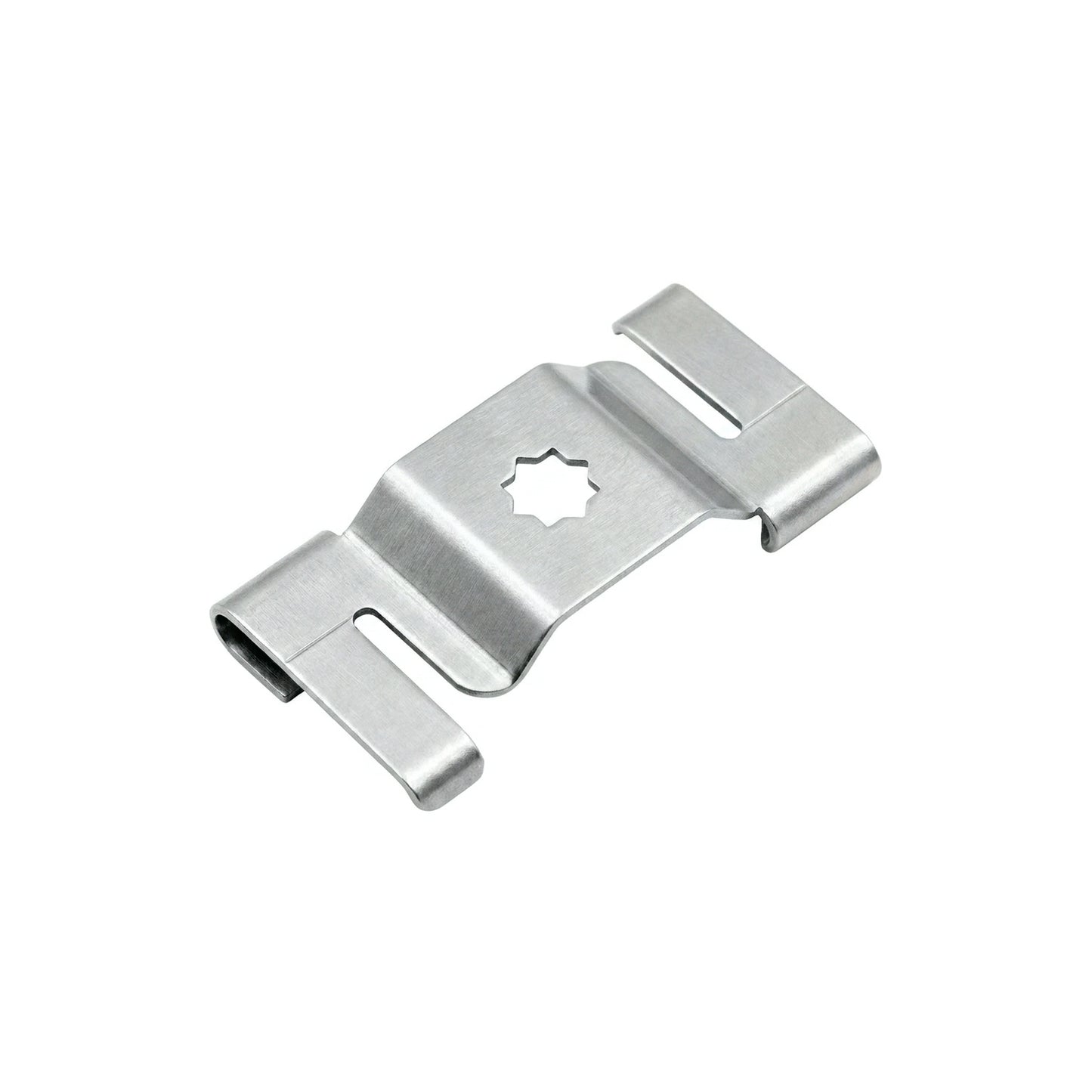

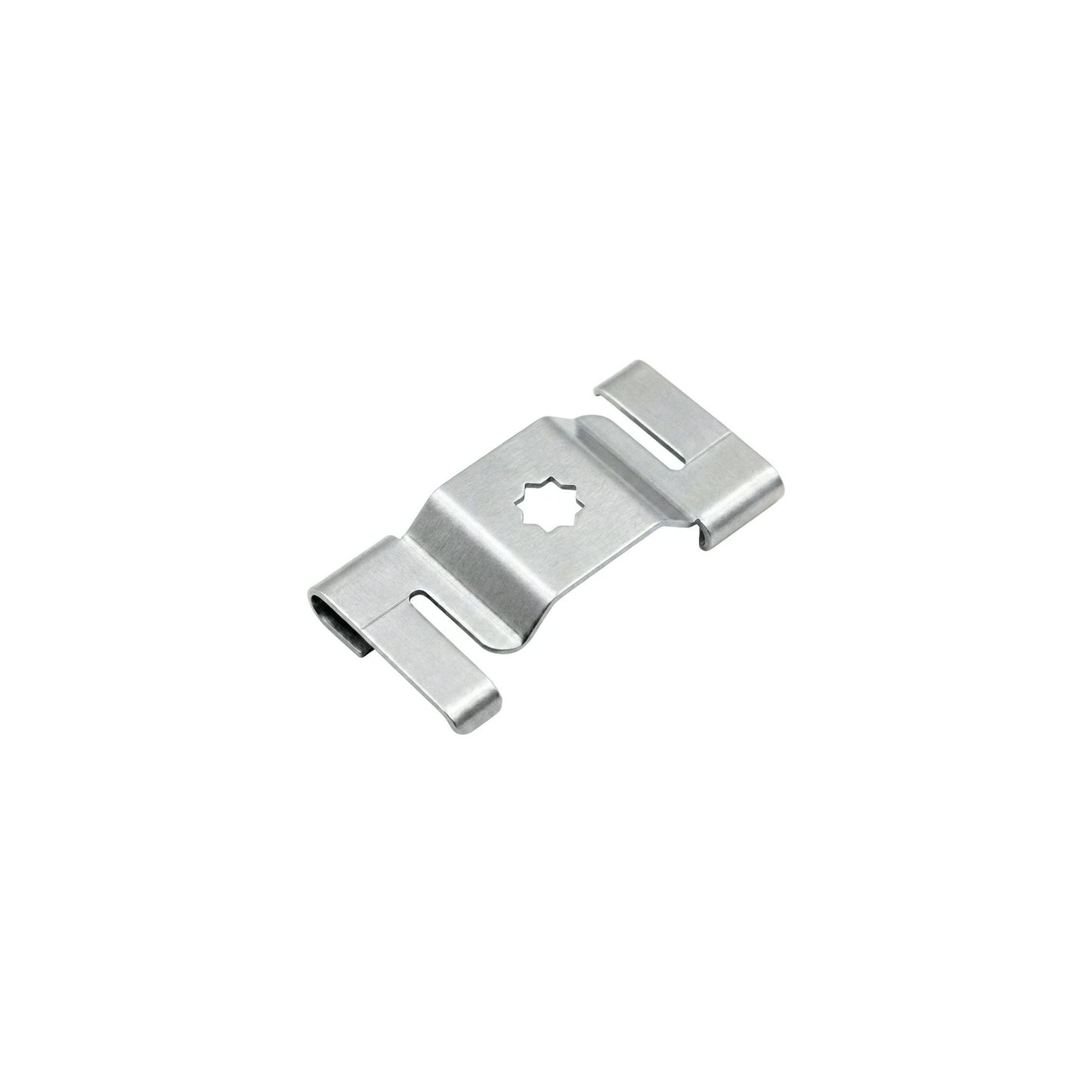

The TC1 9/16 T-Bar Twist Clip is a stamped metal suspension bracket engineered for rapid, tool-less installation on standard 9/16 inch narrow flat drop ceiling grids. It utilizes a mechanical twist and lock action to clamp securely onto the grid profile, providing a rigid anchoring point for suspended lighting fixtures and architectural elements. The central multi point aperture is designed to receive standard threaded mounting studs. Constructed from high tensile steel, this clip maintains consistent clamping force and resists deformation under continuous static loads. It provides a non destructive mounting solution that completely eliminates the need for grid drilling.

Designer’s Note

Specify this clip exclusively for 9/16 inch narrow flat grid systems. It will not seat properly on standard 15/16 inch grids or slotted ceiling profiles. To install, position the clip diagonally across the grid face and rotate it exactly 90 degrees until the flanged edges snap firmly over the T-bar flanges. You must verify that your suspended load does not exceed the structural weight capacity of the ceiling grid framework itself. Always ensure your threaded mounting hardware engages fully with the central aperture to maintain vertical load integrity.
