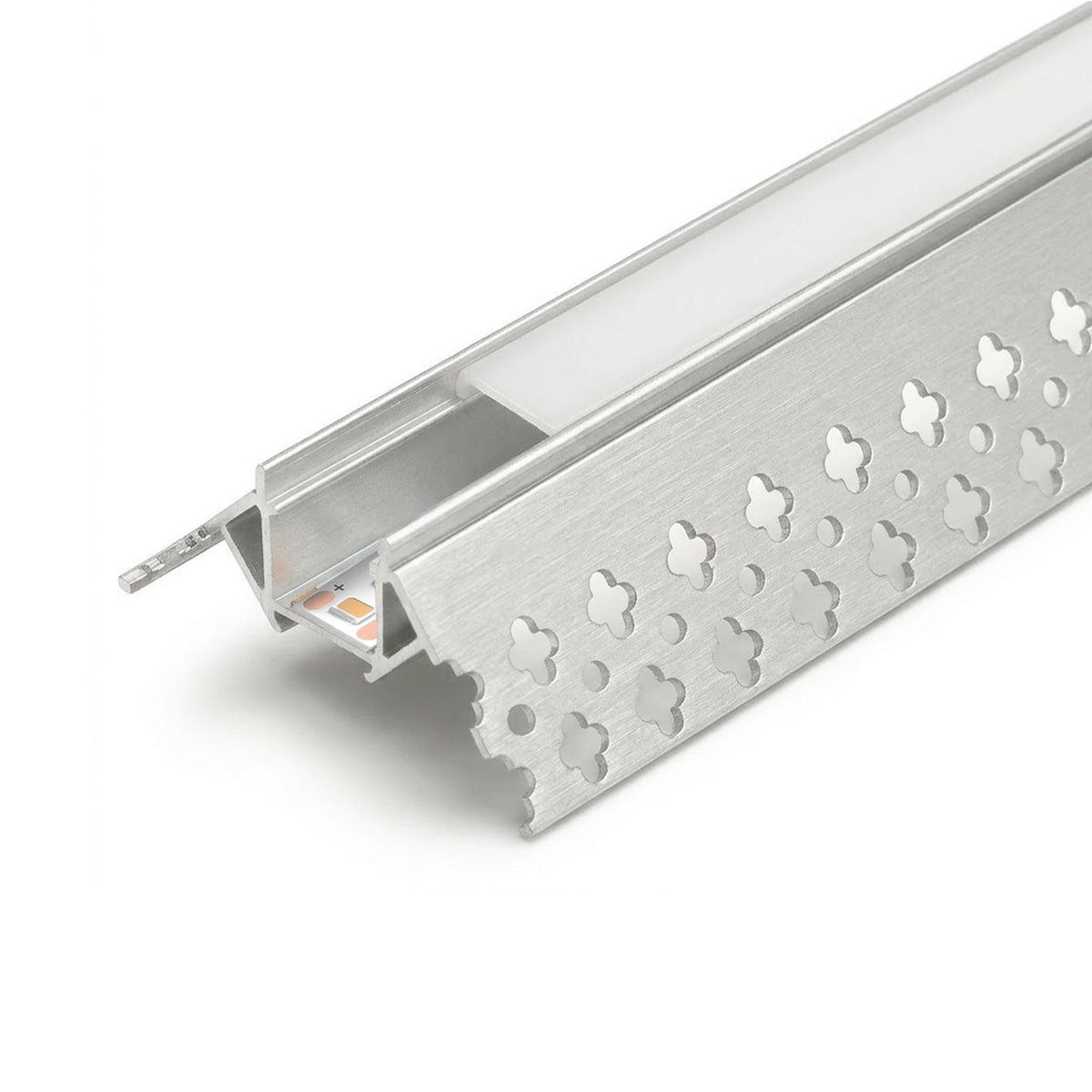

C5315 Trimless Mud-in LED Integration System Architectural Trimless Mud-in Channel for LED Tape and 20mm Light Engines The C5315 operates as a trimless, mud-in fixture assembly architecture engineered for direct embedding into wall and ceiling drywall. It establishes a rigid structural interface within architectural assemblies. The channel connects flexible LED tape and standard 20mm light engines to the building substrate, and it acts as an efficient platform for the lighting system while remaining hidden behind the finish. This integration node transforms raw electrical components into a seamless, flush-mount architectural feature. The structural housing protects the internal electrical infrastructure, and it provides strict mechanical discipline for continuous linear lighting arrays embedded directly into the wall or ceiling surface. Engineering Function The system protects LED engine performance through continuous passive thermal dissipation. The 6063-T5 aluminum structure conducts heat away from the light source into the building assembly, and this process stabilizes junction temperatures. The profile optimizes the optical interface. It receives controlled diffusion lenses or Fusion Optix beam shaping systems to ensure smooth light output, and this optical integration minimizes visible diode imaging in flush-mount applications. Material and Finish Base Material: 6063-T5 aluminum with perforated mud-in flanges Standard Finish: Clear Anodized Optional Finishes: White or Black powder coat End Caps: Available in Grey (C5315-ECG), Black (C5315-ECB), and White (C5315-ECW) System Compatibility LED Engines: Validated for LEDmate LUMAflex and CHROMAflex and VITAflex tape series, as well as 20mm light engines Optical Control: Compatible with standard diffusion lenses and Fusion Optix systems Connection Interface: Accepts standard LEDmate end caps for trimless mud-in profiles Installation and Workflow Advantages Embeds directly into drywall for a seamless, trimless architectural aesthetic Includes perforated flanges for secure plastering and mudding Dissipates heat effectively in embedded architectural assemblies Simplifies procurement with field cuttable standard lengths Application Environments Drywall ceiling and wall transitions Seamless architectural coves Modern residential and commercial interiors Flush-mount lighting in gypsum-board assemblies Technical Specifications Specification Details Primary Function Mechanical housing and Dimensions Dimension Specification Overall Width [Insert Dimension] mm Overall Height [Insert Dimension] mm Form Factor Trimless Mud-in / Perforated Flange Specification and Integration Support This trimless mud-in integration system is specified for architectural projects requiring a seamless, flush-mount finish and stable thermal control in embedded assemblies. It is engineered for use by drywall contractors and architectural lighting designers and OEM luminaire builders. ⇩ Download C5315 1-Page PDF Data Sheet

Designer’s Note

Verify compatibility and structural clearances prior to installation.

Specifications
